1-8
HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8719/20ES)

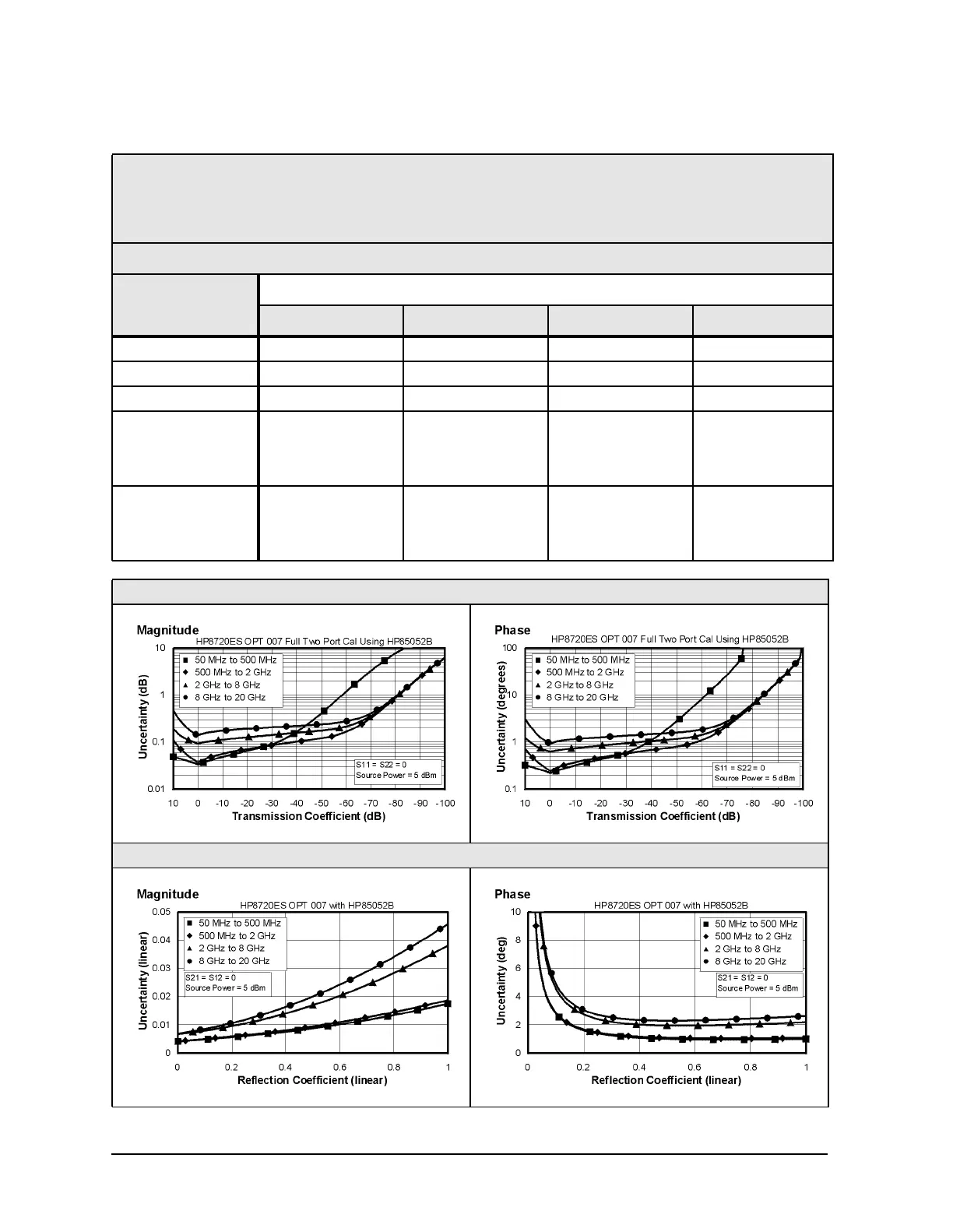

Table 1-6 3.5-mm Device Connector Type
Network Analyzer: HP 8719ES/20ES, Option 007
Calibration Kit: HP 85052B (3.5-mm with Sliding Loads, 50 Ω)
Cables: HP 85132F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
0.05 to 0.5 GHz 0.5 to 2 GHz 2 t0 8GHz 8 to 20 GHz
Directivity (dB) 48 48 44 44
Source Match (dB) 40 39 32 30
Load Match (dB) 48 45 38 37
Refl. Tracking
Magnitude (dB) ±(0.006 + .02/°C) ±(0.010 + .03/°C) ±(0.030 + .03/°C) ±(0.031 + .04/°C)
Phase (deg) ±(0.040 + 0.1/°C) ±(0.066 + 0.1/°C) ±(0.198 + 0.3/°C) ±(0.205 + 0.5/°C)
Trans. Tracking
Magnitude (dB) ±(0.011 + .02/°C) ±(0.016 + .03/°C) ±(0.066 + .03/°C) ±(0.108 + .04/°C)
Phase (deg) ±(0.073 + 0.1/°C) ±(0.106 + 0.1/°C) ±(0.436 + 0.3/°C) ±(0.713 + 0.5/°C)
Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
