1-9
HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8719/20ES)
Table 1-7 3.5-mm Device Connector Type
Network Analyzer: HP 8719ES/20ES, Option 007
Calibration Kit: HP 85052D (3.5-mm 50 Ω)
Cables: HP 85132F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
0.05 to 0.5 GHz 0.5 to 2 GHz 2 t0 8GHz 8 to 20 GHz
Directivity (dB) 42 42 38 36
Source Match (dB) 37 37 30 28
Load Match (dB) 42 41 36 34
Refl. Tracking
Magnitude (dB) ±(0.006 + .02/°C) ±(0.010 + .03/°C) ±(0.030 + .03/°C) ±(0.031 + .04/°C)
Phase (deg) ±(0.038 + 0.1/°C) ±(0.069 + 0.1/°C) ±(0.200 + 0.3/°C) ±(0.205 + 0.5/°C)
Trans. Tracking
Magnitude (dB) ±(0.018 + .02/°C) ±(0.019 + .03/°C) ±(0.080 + .03/°C) ±(0.141 + .04/°C)
Phase (deg) ±(0.118 + 0.1/°C) ±(0.123 + 0.1/°C) ±(0.531 + 0.3/°C) ±(0.928 + 0.5/°C)

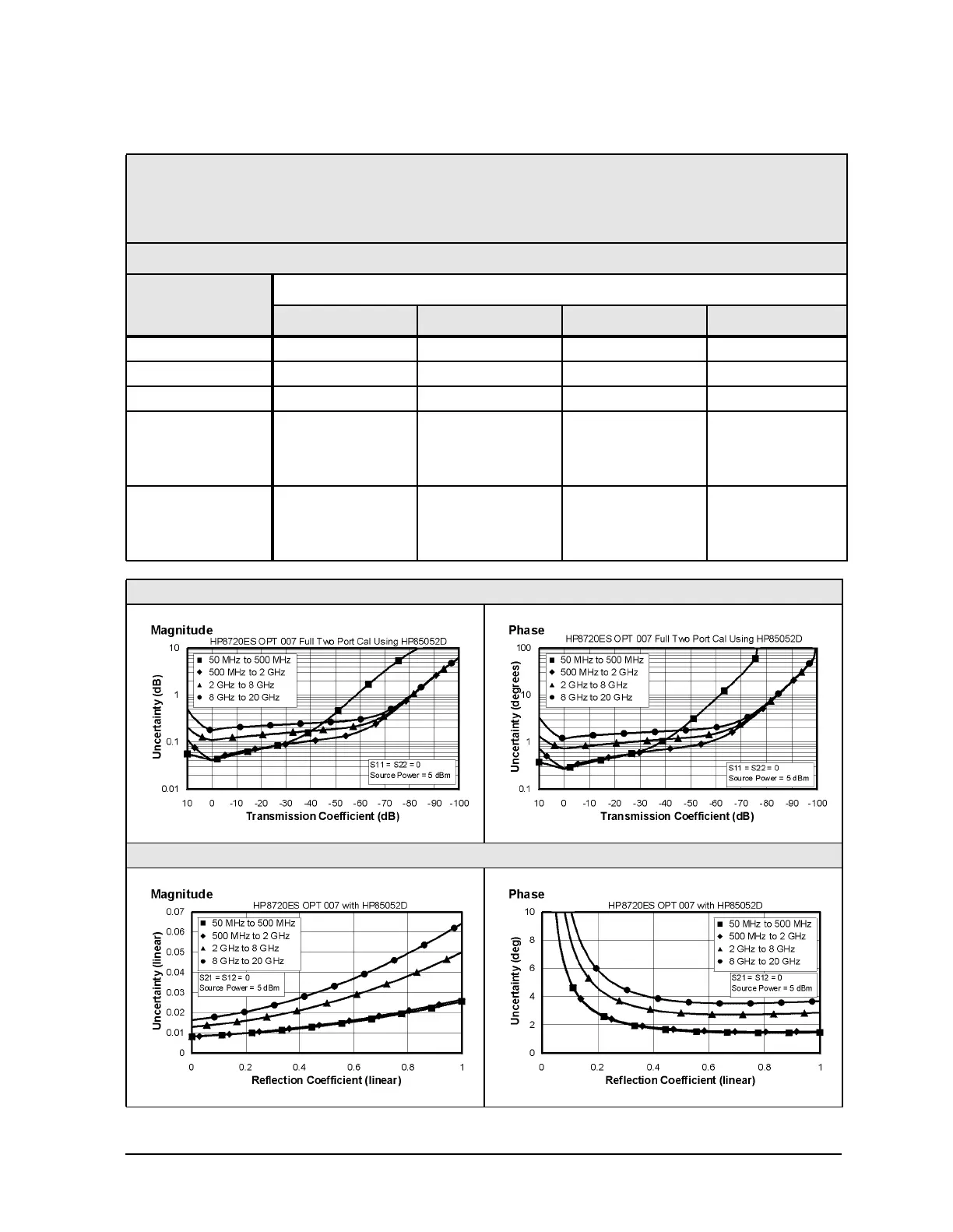

Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
