HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8722ES)
Table 1-12 2.4-mm Device Connector Type
Network Analyzer: HP 8722ES, Standard
Calibration Kit: HP 85056A (2.4-mm, 50 Ω)
Cables: HP 85133F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
0.05 to 2 GHz 2 to 8 GHz 8 to 20 GHz 20 to 40 GHz
Directivity (dB) 42 42 42 38
Source Match (dB) 41 38 38 33
Load Match (dB) 42 42 42 38
Refl. Tracking
Magnitude (dB) ±(0.005 + .03/°C) ±(0.010 + .03/°C) ±(0.010 + .04/°C) ±(0.021 + .06/°C)
Phase (deg) ±(0.033 + 0.1/°C) ±(0.066 + 0.3/°C) ±(0.066 + 0.5/°C) ±(0.139 + 1.0/°C)
Trans. Tracking
Magnitude (dB) ±(0.020 + .03/°C) ±(0.038 + .03/°C) ±(0.048 + .04/°C) ±(0.110 + .06/°C)
Phase (deg) ±(0.132 + 0.1/°C) ±(0.251 + 0.3/°C) ±(0.317 + 0.5/°C) ±(0.736 + 1.0/°C)

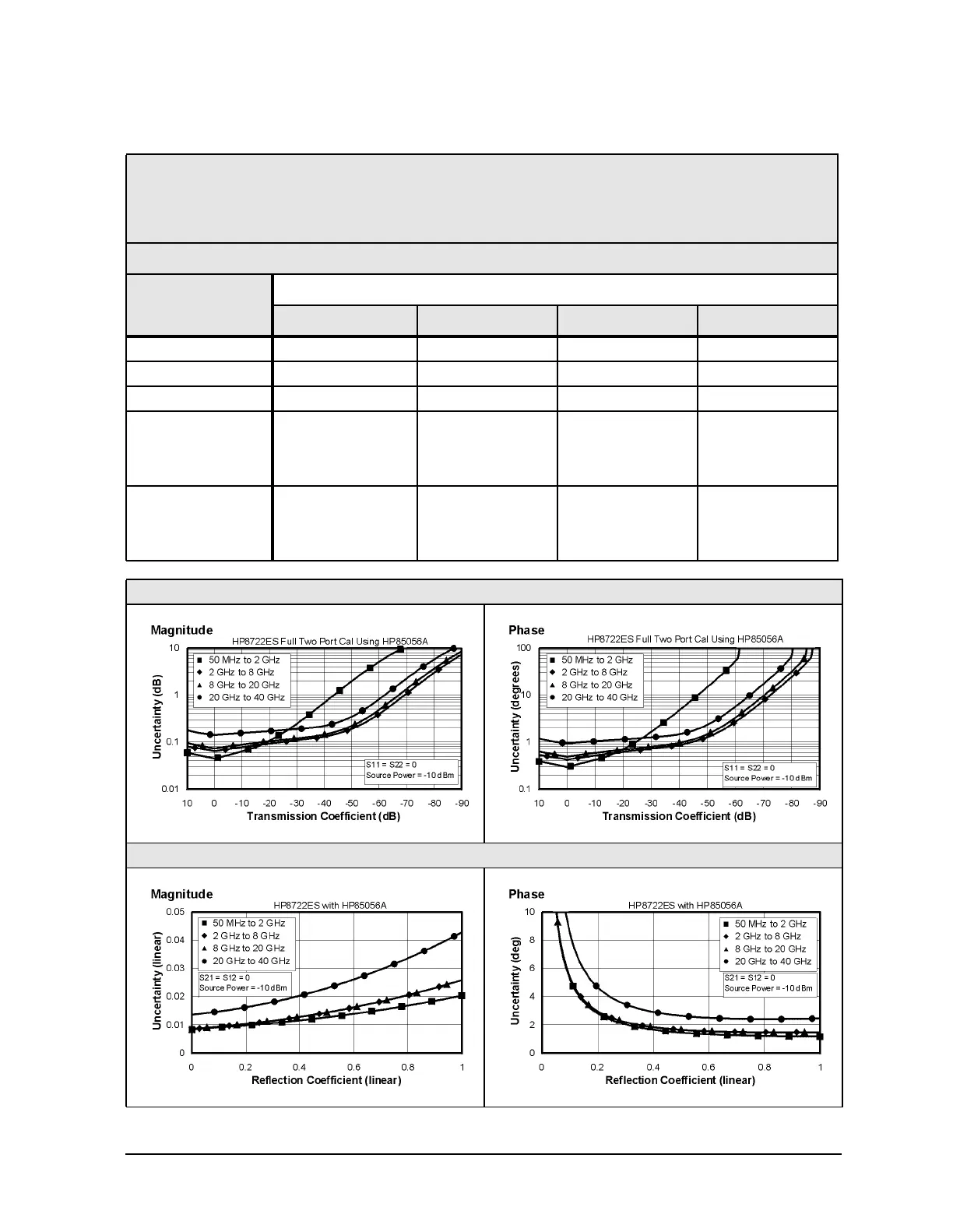

Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
