1-16
HP 8719/20/22ES Specifications and Characteristics
Corrected System Performance (HP 8722ES)
Table 1-13 2.4-mm Device Connector Type
Network Analyzer: HP 8722ES, Standard
Calibration Kit: HP 85056D (2.4-mm, 50 Ω)
Cables: HP 85133F
Calibration: Full 2-Port
IF BW = 10 Hz, Avg off, Temp = 23 ± 3°C with < 1°C deviation from cal temp, Isol cal with avg = 8
Description Specification
0.05 to 2 GHz 2 to 8 GHz 8 to 20 GHz 20 to 40 GHz
Directivity (dB) 42 42 34 26
Source Match (dB) 40 40 30 23
Load Match (dB) 42 42 34 26
Refl. Tracking
Magnitude (dB) ±(0.006 + .03/°C) ±(0.029 + .03/°C) ±(0.029 + .04/°C) ±(0.080 + .06/°C)
Phase (deg) ±(0.040 + 0.1/°C) ±(0.191 + 0.3/°C) ±(0.191 + 0.5/°C) ±(0.528 + 1.0/°C)
Trans. Tracking
Magnitude (dB) ±(0.022 + .03/°C) ±(0.034 + .03/°C) ±(0.116 + .04/°C) ±(0.372 + .06/°C)
Phase (deg) ±(0.145 + 0.1/°C) ±(0.224 + 0.3/°C) ±(0.766 + 0.5/°C) ±(2.455 + 1.0/°C)

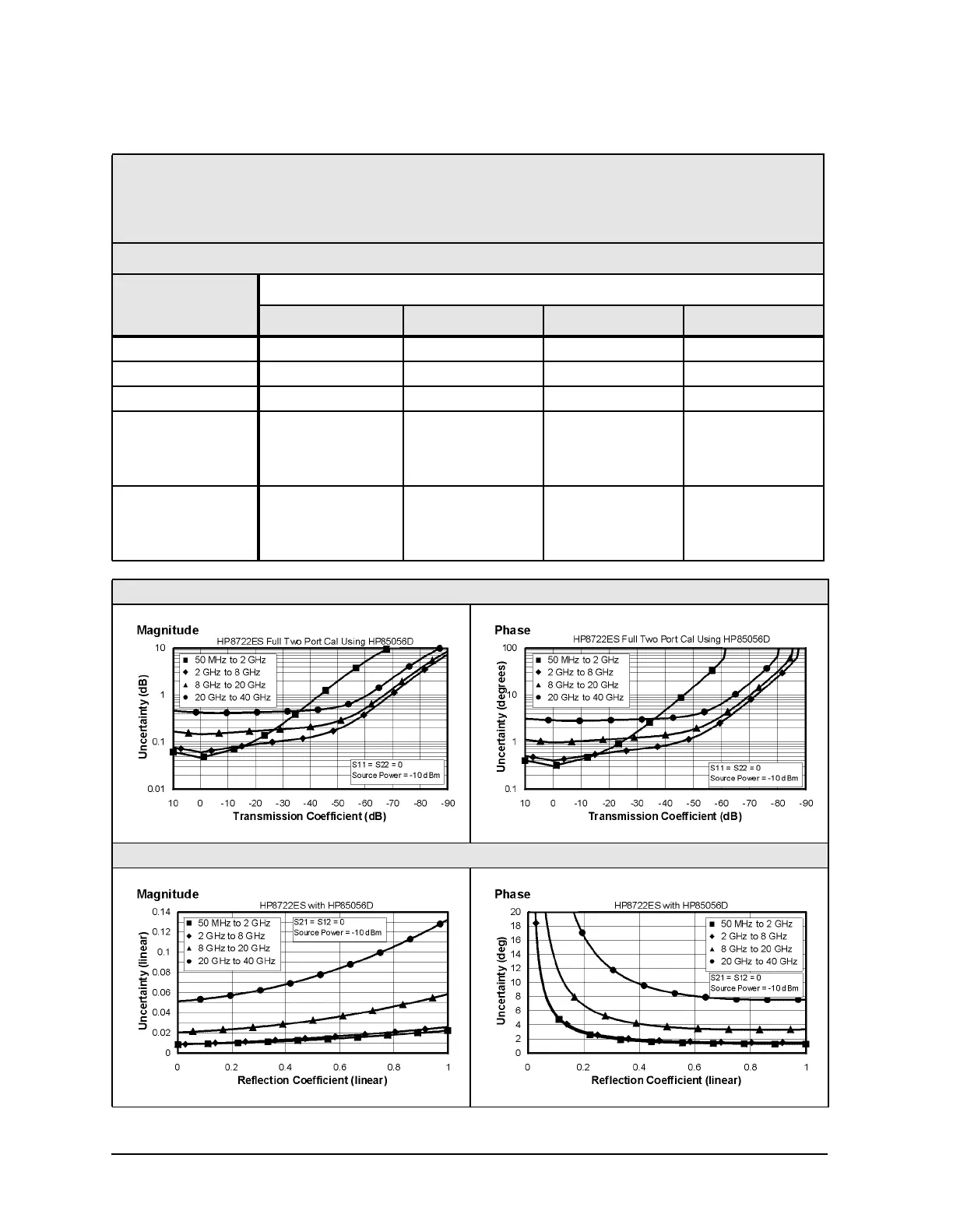

Transmission Uncertainty (Specification)
Reflection Uncertainty (Specification)
