HP AlphaServer ES47

1.1 System Components
Two upgrades are available: 1) from an ES47 Model 2 standalone tower system
to a rack mount cabinet Model, and 2) upgrading from an ES47 Model 2 to Model
4 (in the 29” deep rack mount cabinet).

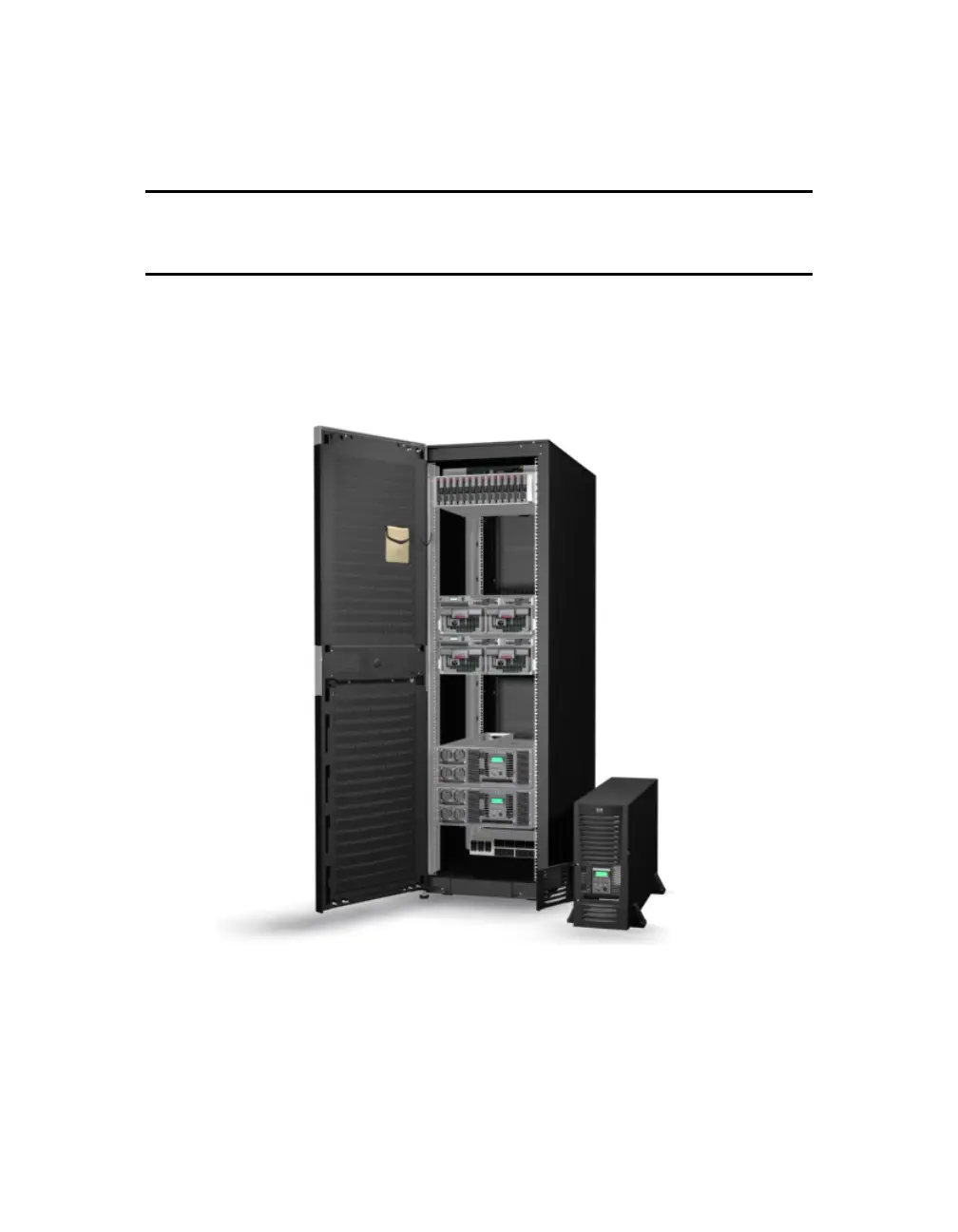

Figure 1–1 ES47 System (Tower and Cabinet)
Note that it is possible to install up to four 2P drawers in a cabinet. For ES47
systems, only two 2P drawers can be connected to create an M4 system. If
you install additional drawers, an additional NAT box is required for each
independent ES47 system (M2 or M4) residing in the same cabinet.
Installation and configuration information ships with the NAT box.
