HP AlphaServer ES47

Table 3–2 Drawer IDs
Position Set drawer ID Model
System drawer, bottom 0 2P
System drawer, 2
nd
from bottom 1 4P
System drawer, 3
rd
from bottom 2
System drawer, 4
th
from bottom 3
Reserved for
upgrade to ES80
PCI drawer, 5
th
from bottom 4 --
PCI drawer, 6
th
from bottom 5 --
PCI drawer, 7
th
from bottom 6 --
PCI drawer, 8
th
from bottom 7 --

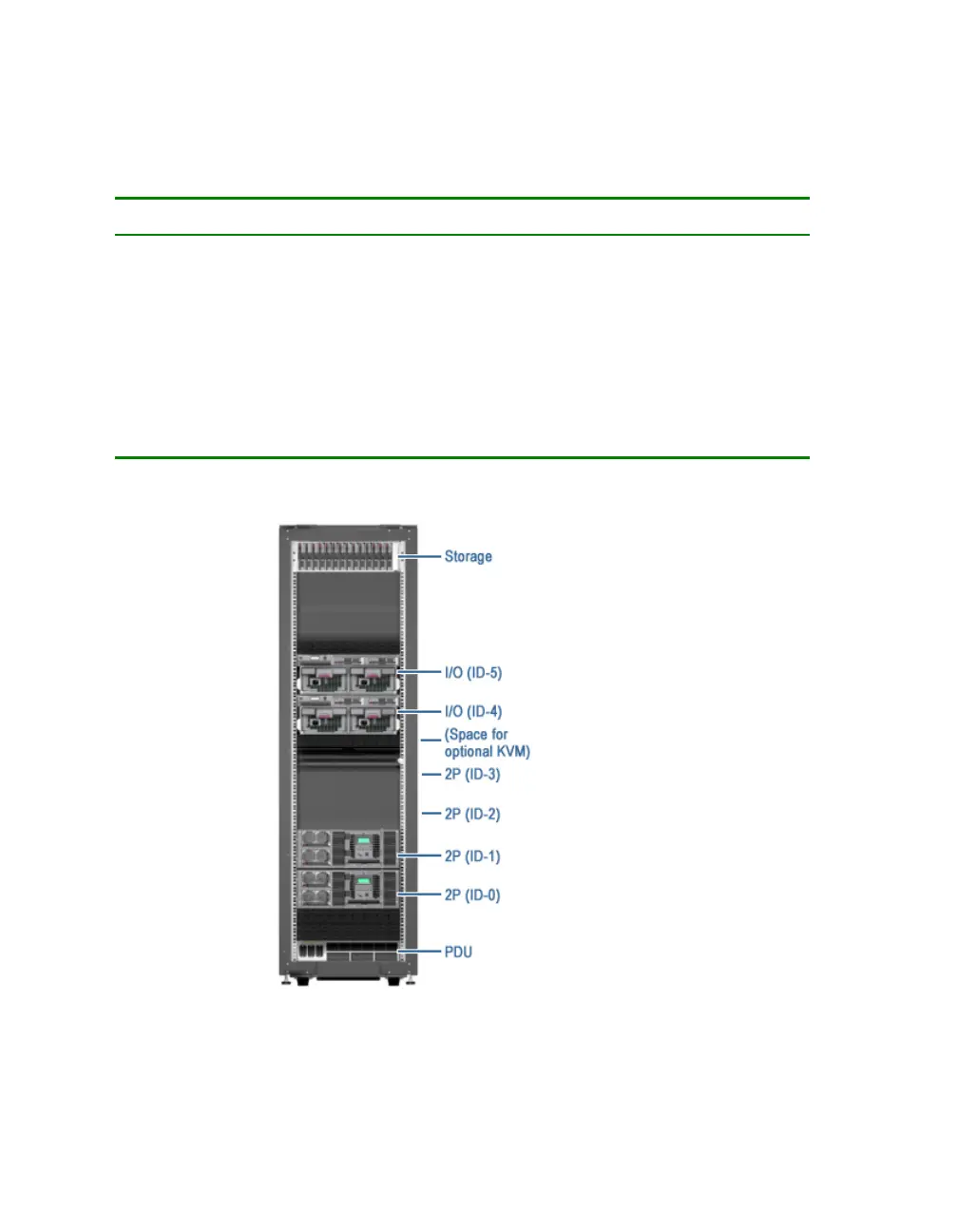

Figure 3–12 ID Numbers
