3.5 Connect Internal LAN, Ground, and Power Cables
(M4 only)
After installing the IP cables, plug the Internal LAN cable into the HUB.
Connect the ground cable. Then install the power cables to the PDU.

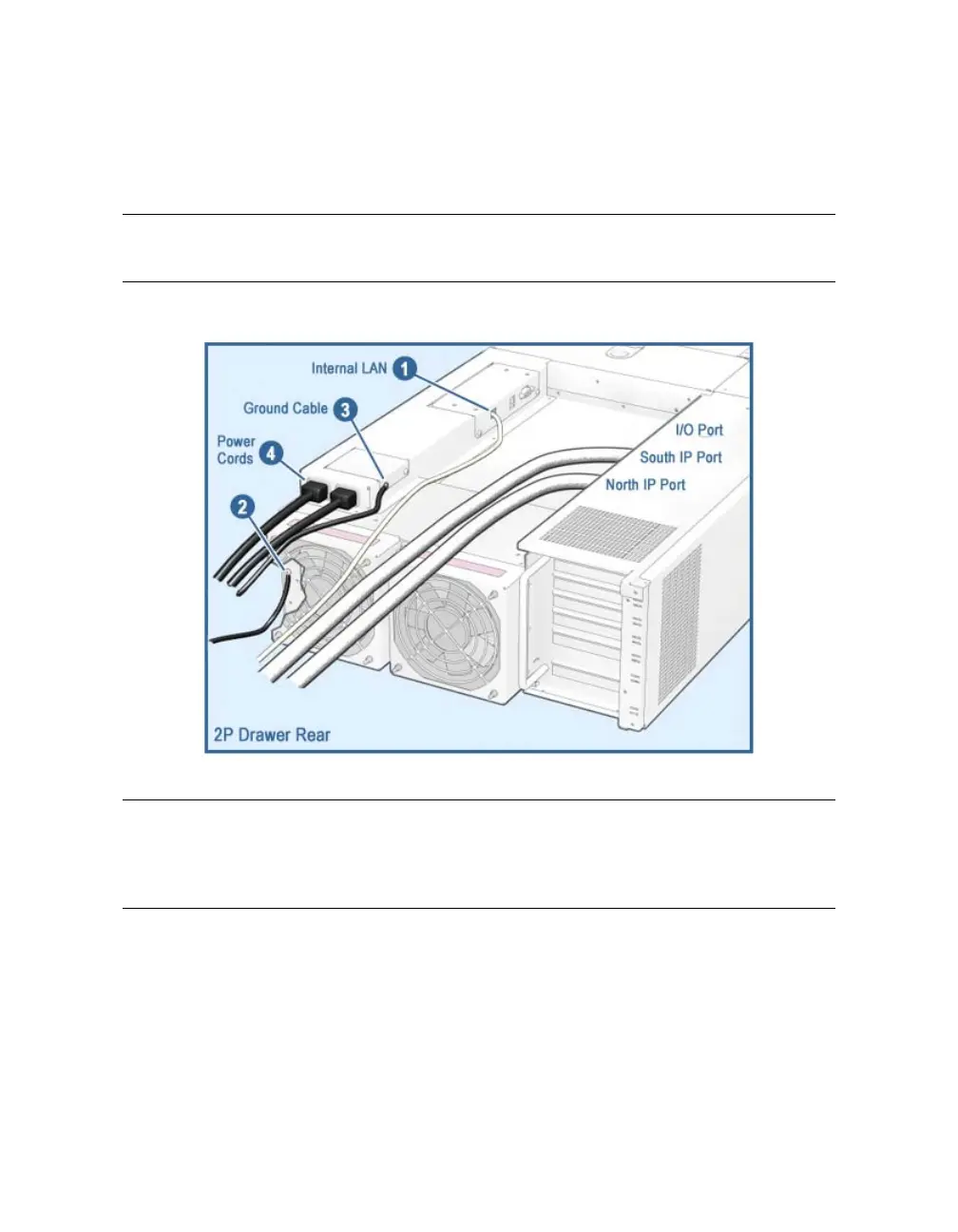

Figure 3–6 Cabling the Drawer
Note:
Create a proper service loop. Allow enough Internal LAN, ground wire, and power cable to
enable full extension when the drawer is pulled out for service.
3-8 HP AlphaServer ES47 Upgrade
