36 Aruba 8325 Switch Installation and Getting Started Guide

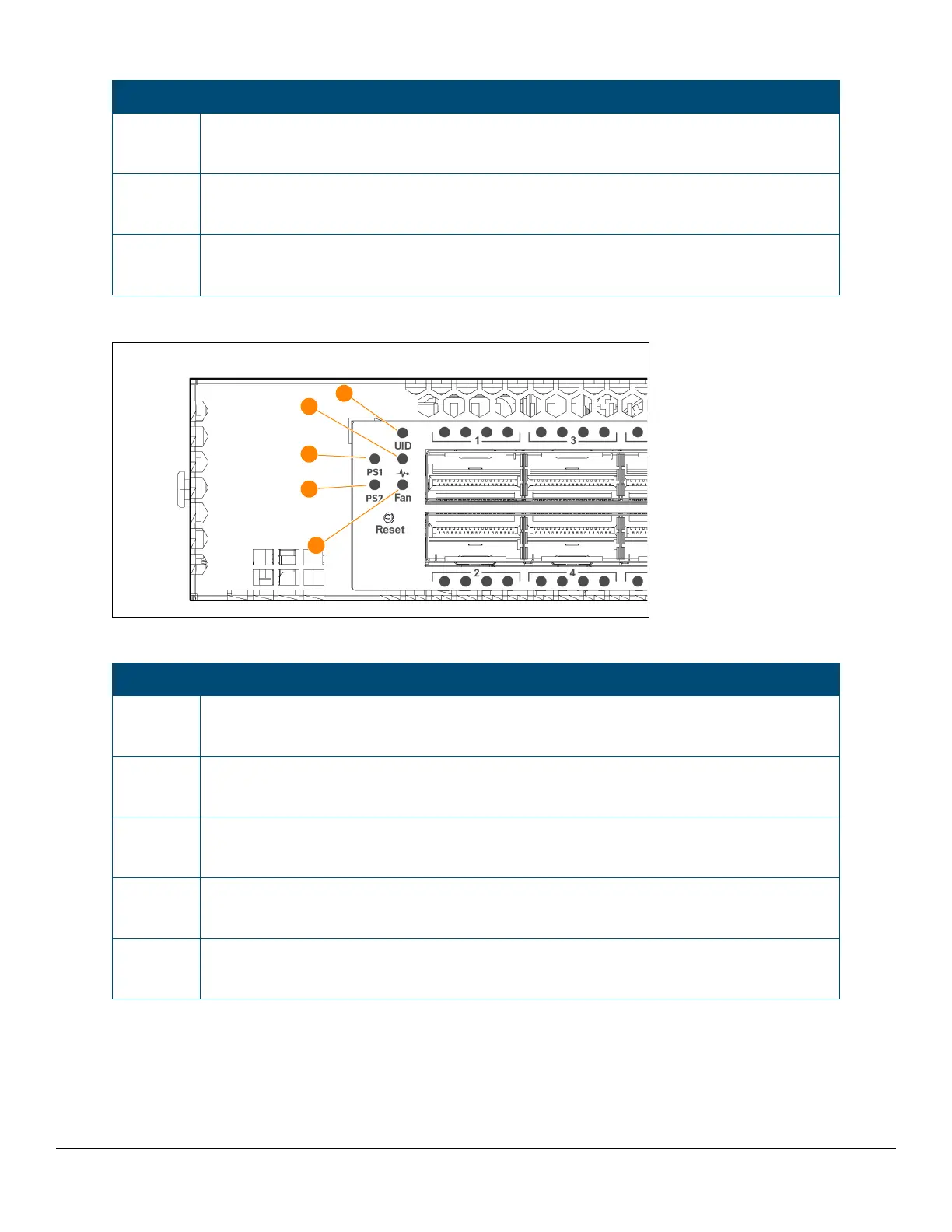

Figure 18: Chassis LEDs for the Aruba 8325-32C (JL626A, JL627A, JL859A, and JL860A)
5. Power off the switch
Remove the power cord from the switch and from the power source.
5 Global Status LED:
Green after power on, in the default configuration. Flashes amber during bootup.
6UID LED
Locator or Unit Identification LED. Off after power on.
7 QSFP28 Port LEDs:
Off, unless a network cable is connected and the port is receiving link beat.
Table 24: Chassis LED labels for the Aruba 8325-32C (JL626A, JL627A, JL859A, and JL860A)
Label Description
1UID LED
Locator or Unit Identification LED. Off after power on.
2 Global Status LED:
Green after power on, in the default configuration. Flashes amber during bootup.
3 PS1 LED:
Green after power on, unless the power supply is in a fault state, or not receiving power.
4 PS2 LED:
Green after power on, unless the power supply is in a fault state, or not receiving power.
5Fan LED:
Green after power on, unless a fan on the back of the unit is in a fault state.
Table 23: Chassis LED labels for the Aruba 8325-48Y8C (JL624A, JL625A, JL857A, and JL858A) (Continued)
Label Description
