Service Reference Guide, dc5000 360201-002 7–9
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

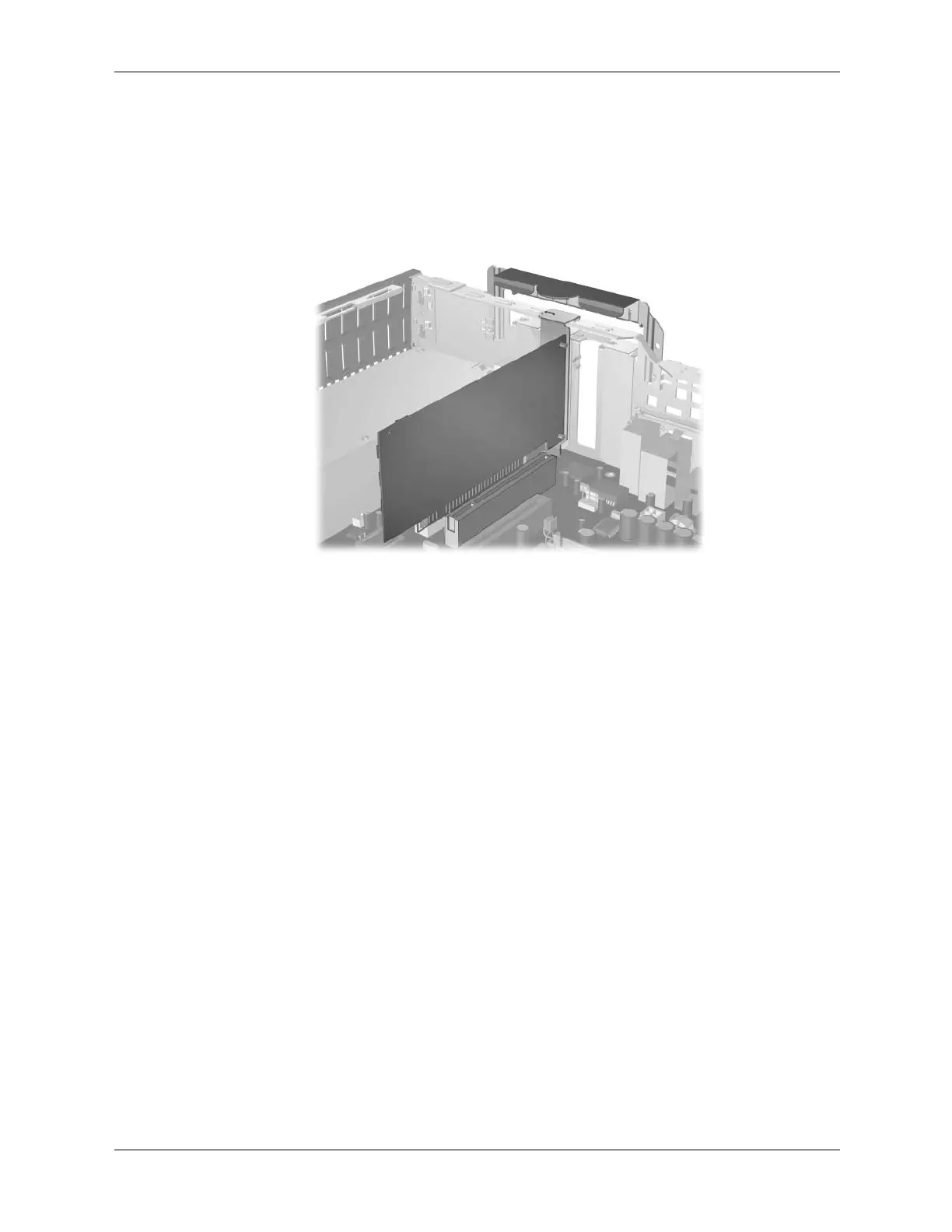

6. If you are removing an expansion card from a PCI expansion socket, hold the card at each
end and carefully rock it back and forth until the connectors pull free from the socket. Lift
the expansion card straight up then pull it in toward the center of the chassis to release it
from the chassis frame. Be sure not to scrape the card against other components.
