Service Reference Guide, dc5000 360201-002 6–15
Removal and Replacement Procedures— Microtower (µT) Chassis
6.8.2 Removing a Drive
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).
3. Remove the front bezel (Section 6.4, “Front Bezel”).
4. Disconnect the power and data cables from the back of the drive, as shown in the following
illustrations.

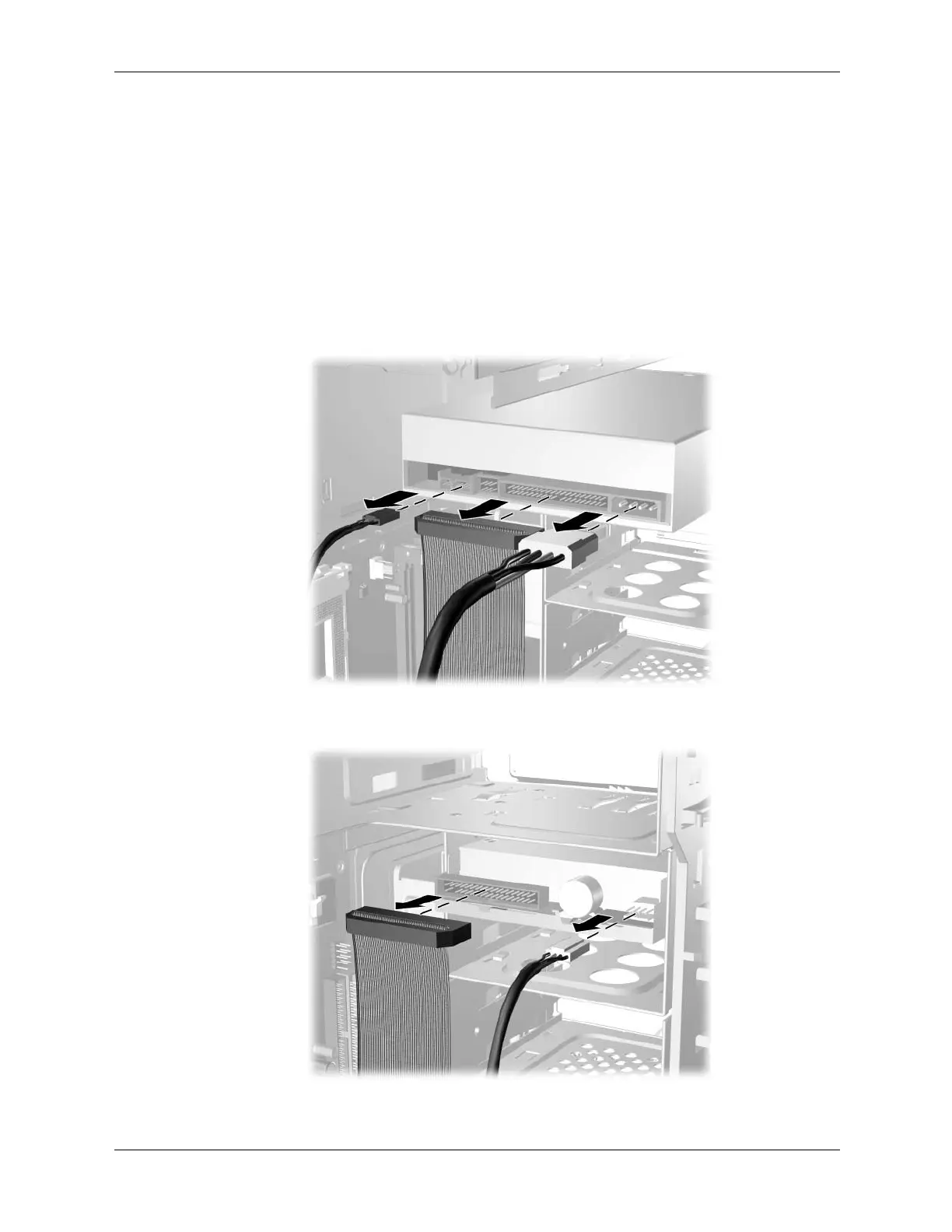

Disconnecting Optical Drive Cables
Disconnecting Diskette Drive Cables
