6–2
3
60
201-00
2
Servi
ce Ref
erence Gui
de, dc5
000
Remo
val and R
eplacement Pr
ocedures— M
icr
otow
er (µT) Chas
sis
6.2
Ext
ern
al
Se
c
u
rit
y D
e
vic
es
6.2.
1
Ins
talling a C
ab
le Loc
k

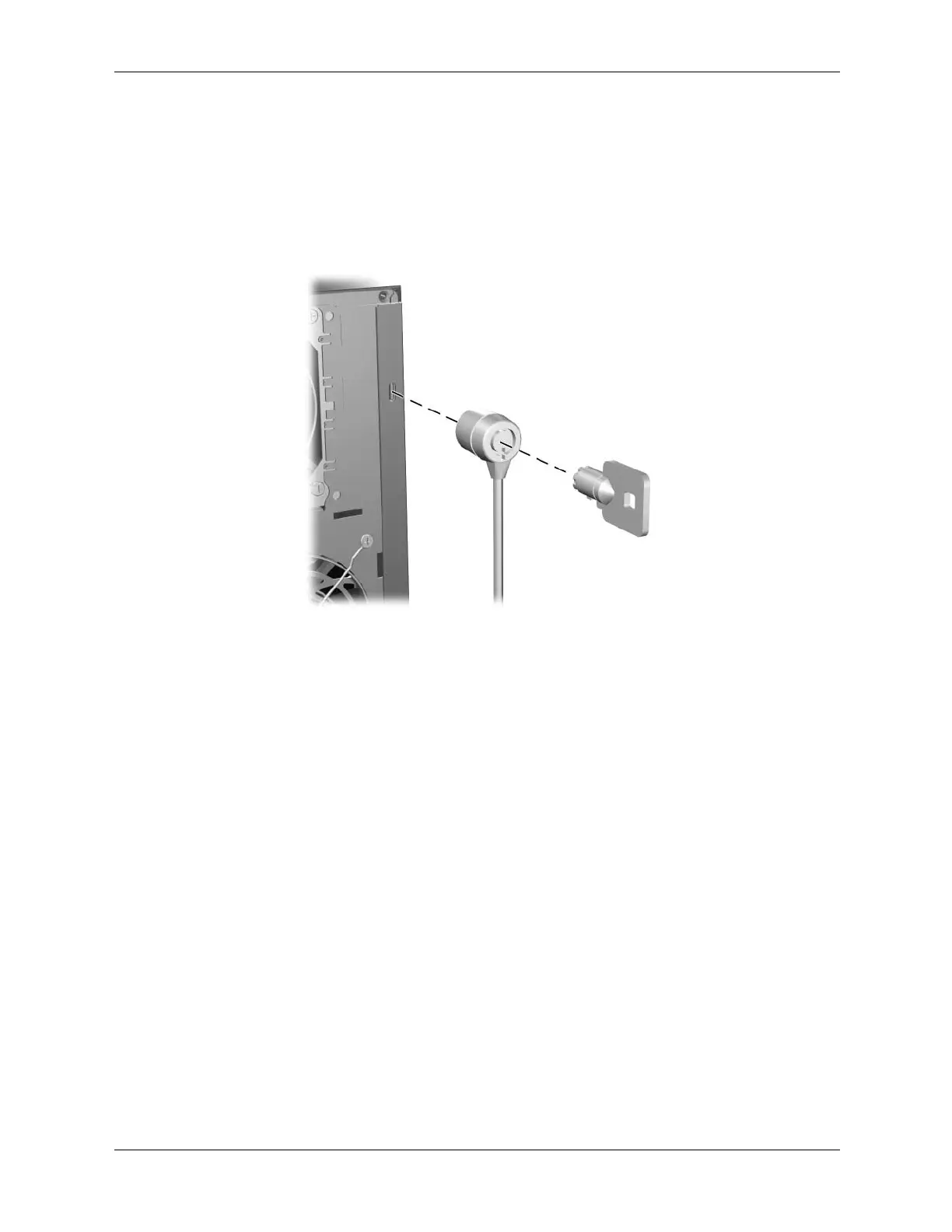

The cable lock may be used to secure the computer
access panel to the ch
assis and, at the same
time, secure the computer to a fix
ed object.
63
65
Table of Contents
Default Chapter
5
Table of Contents
5
1 Installing the Operating System
9
Installing or Upgrading Device Drivers
9
Creating a Bootable Diskette or USB Flash Media Device
9
HP Software
10
2 Setup Utilities and Diagnostics Features
11
Power-On Self-Test (POST)
11
Computer Setup Utilities
12
Using Computer Setup (F10) Utilities
13
Computer Setup Menu
14
Diagnostics for Windows
22
Detecting Diagnostics for Windows
22
Installing Diagnostics for Windows
23
Using Categories in Diagnostics for Windows
23
Running Diagnostic Tests in Diagnostics for Windows
25
Configuration Record
26
Installing Configuration Record
26
Running Configuration Record
26
Remote Diagnostics Enabling Agent
27
Installing or Upgrading Remote Diagnostics Enabling Agent
27
Running the Remote Diagnostics Enabling Agent
27
Protecting the Software
27
Restoring the Software
28
3 Desktop Management
29
Initial Configuration and Deployment
29
Remote System Installation
30
Software Updating and Management
30
HP Client Manager Software
30
Altiris Client Management Solutions
30
System Software Manager
31
Proactive Change Notification (PCN)
31
Subscriber's Choice
32
ROM Flash
32
Remote ROM Flash
32
HPQ Flash
32
Failsafe Boot Block ROM
33
Replicating the Setup
34
Dual-State Power Button
34
Power Management
35
World Wide Web Site
35
Building Blocks and Partners
35
Asset Tracking and Security
36
Password Security
38
Establishing a Setup Password Using Computer Setup
38
Establishing a Power-On Password Using Computer Setup
38
Entering a Setup Password
39
Deleting a Power-On or Setup Password
40
National Keyboard Delimiter Characters
41
Clearing Passwords
41
Drivelock
42
Using Drivelock
43
Drivelock Applications
43
Master Boot Record Security
44
Before You Partition or Format the Current Bootable Disk
45
Cable Lock Provision
45
Fingerprint Identification Technology
46
Fault Notification and Recovery
46
Drive Protection System
46
Surge-Tolerant Power Supply
46
Thermal Sensor
46
4 Ultra ATA Drive Guidelines and Features
47
Ultra ATA Jumpers
47
Ultra ATA Cables
47
Cable Layout
47
Drive Installation Guidelines
48
Device Classes
49
Attach Sequence Rules by Class Priority
49
Attach Sequence Worksheet
50
Additional Drive Application Notes
52
Smart
52
Drive Capacities
53
5 Identifying the Chassis, Routine Care, and Disassembly Preparation
55
Chassis Designations
55
Microtower (Μt)
55
Small Form Factor (SFF)
56
Electrostatic Discharge Information
57
Generating Static
57
Preventing Electrostatic Damage to Equipment
57
Personal Grounding Methods and Equipment
58
Grounding the Work Area
58
Recommended Materials and Equipment
58
Routine Care
59
General Cleaning Safety Precautions
59
Cleaning the Computer Case
59
Cleaning the Keyboard
60
Cleaning the Monitor
60
Cleaning the Mouse
60
Service Considerations
61
Power Supply Fan
61
Tools and Software Requirements
61
Screws
61
Cables and Connectors
62
Hard Drives
62
Lithium Coin Cell Battery
62
6 Removal and Replacement Procedures- Microtower (Μt) Chassis
63
Preparation for Disassembly
63
External Security Devices
64
Installing a Cable Lock
64
Installing a Padlock
65
Access Panel
66
Front Bezel
67
Front Drive Bezels
70
Drive Bezel Blank
70
Diskette Drive Bezel
71
Drive Bezel Blank
71
Memory Modules
72
Expansion Cards
73
Expansion Slot Cover
73
PCI Expansion Card
74
Drives
76
Drive Positions
76
Removing a Drive
77
Releasing the Drives
78
Installing a Drive
79
Chassis Fan
82
Front I/O Panel Housing Assembly
83
Front I/O Devices
84
Power Switch Assembly
85
Processor and Heatsink
87
System Board
88
Battery
89
1Type 1 Battery Holder
90
2Type 2 Battery Holder
91
3Type 3 Battery Holder
92
Speaker
93
Power Supply
94
7 Removal and Replacement Procedures-Small Form Factor (SFF) Chassis
95
Preparation for Disassembly
95
External Security Devices
96
Cable Lock
96
Padlock
97
Computer Access Panel
98
Front Bezel
99
Front Drive Bezels
100
Memory Modules
101
PCI Expansion Card
102
Drives
105
Drive Positions
105
Cable Routing
106
Optical Drive
107
External 3.5-Inch Drive
110
Primary Hard Drive
112
Front I/O Devices
114
Power Switch Assembly
115
System Board
116
Chassis Fan
117
Battery
118
1Type 1 Battery Holder
119
2Type 2 Battery Holder
120
Processor and Heatsink
121
Speaker
122
Power Supply
123
Connector Pin Assignments
125
Parallel Interface
127
General Requirements
131
Post Error Messages
133
Preliminary Checklist
141
Solving Minor Problems
142
Solving Power Supply Problems
144
Solving Diskette Problems
145
Solving Hard Drive Problems
146
Solving Display Problems
149
Solving Audio Problems
152
Solving Printer Problems
154
Solving Keyboard and Mouse Problems
155
Solving Hardware Installation Problems
156
Solving Network Problems
158
Solving Memory Problems
160
Solving Processor Problems
161
Solving Drive Key Problems
163
Solving Internet Access Problems
163
Amd-Based/Intel-Based Systems
171
DIMM Sockets
172
