Service Reference Guide, dc5000 360201-002 6–11
Removal and Replacement Procedures— Microtower (µT) Chassis
6.7 Expansion Cards
6.7.1 Expansion Slot Cover
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).

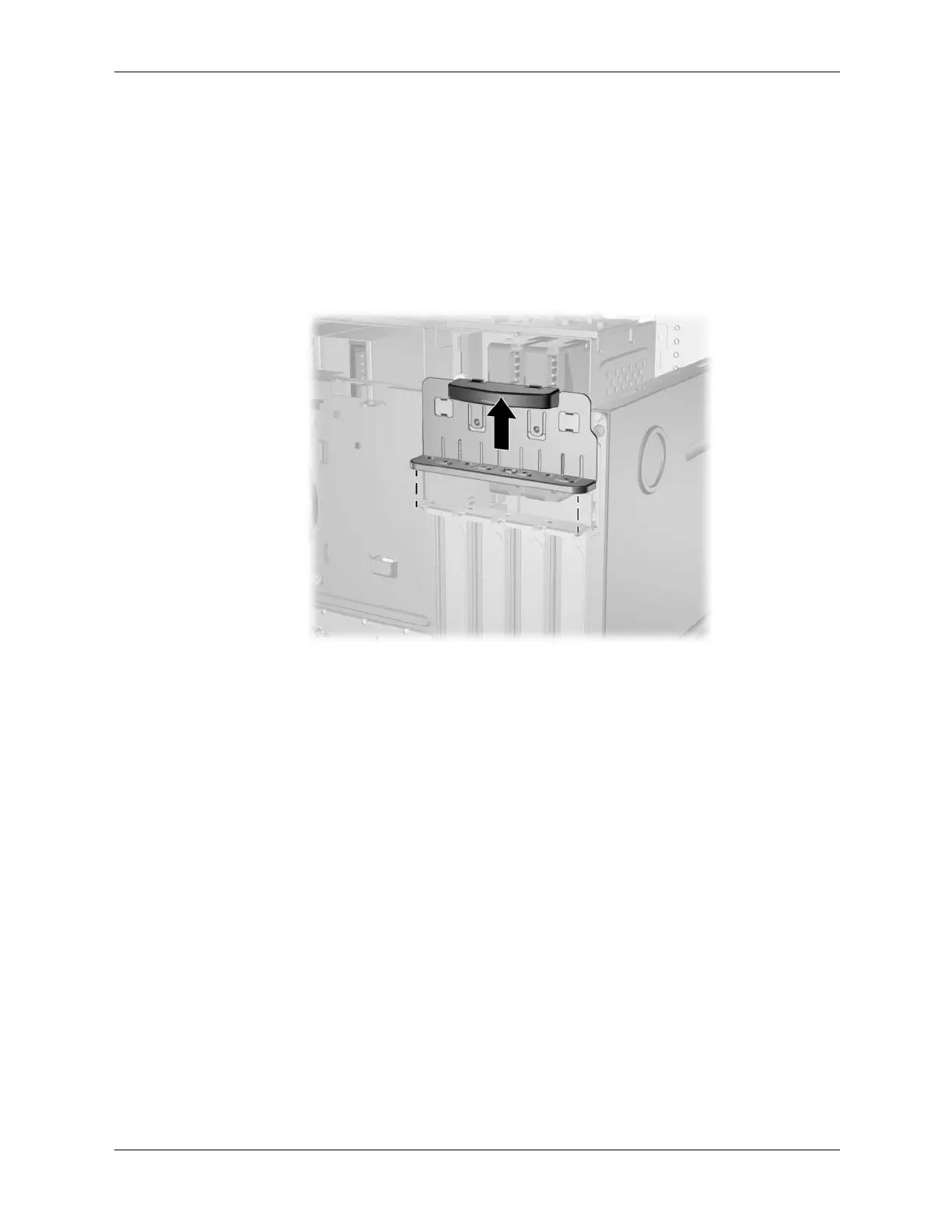

3. On the rear of the computer, slide the slot cover lock up to access the expansion slot covers.
For instructions on PCI expansion cards, see Section 6.7.2, “PCI Expansion Card.”
