6–20 360201-002 Service Reference Guide, dc5000
Removal and Replacement Procedures— Microtower (µT) Chassis
6.9 Chassis Fan
1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).
2. Remove the access panel and rotate the computer so the system board is parallel to the table
to make it easier to work on (
Section 6.3, “Access Panel”).

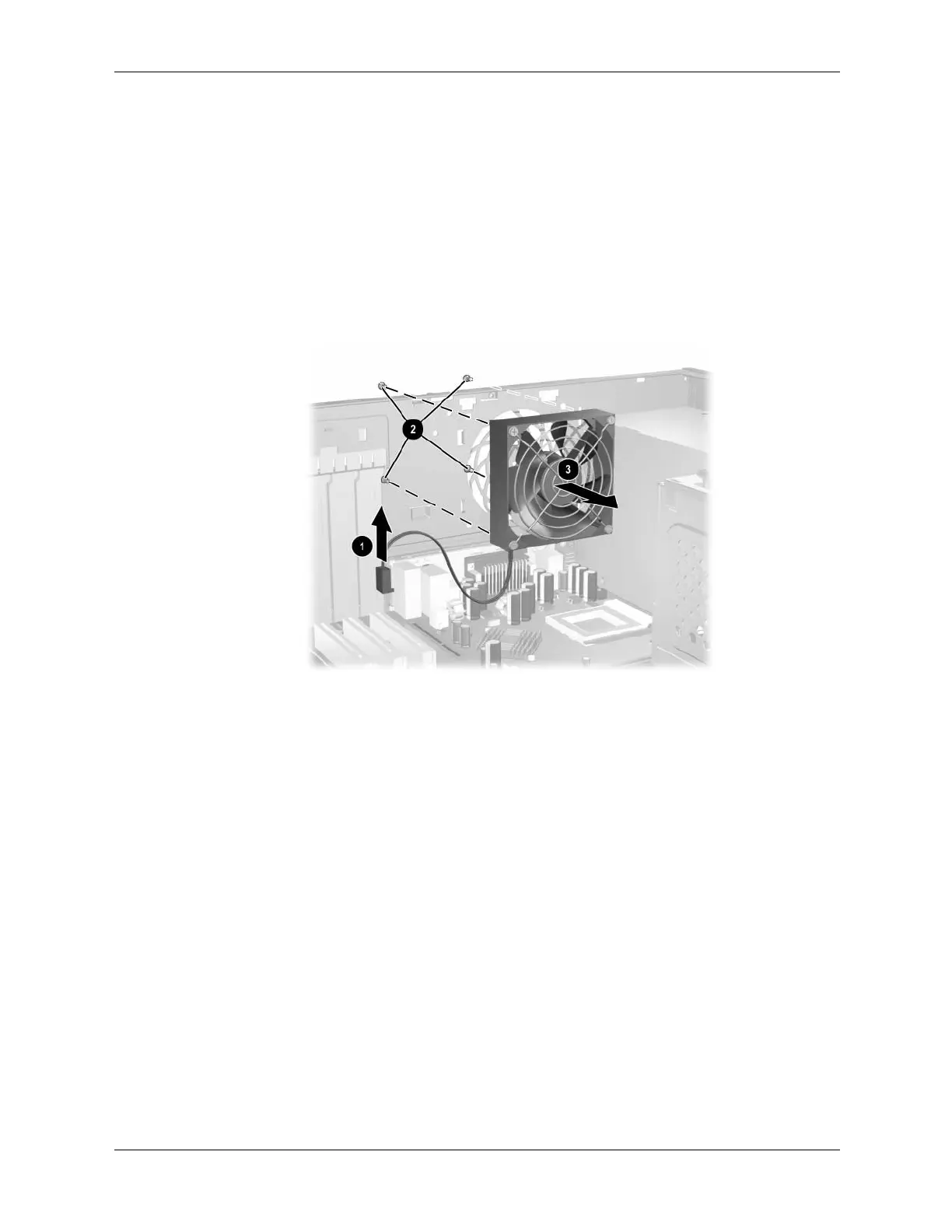

3. Disconnect the power cable that connects the chassis fan to the system board 1.
4. Remove the four screws from the rear of the chassis 2 that secure the fan.
5. Remove the fan from the chassis 3.
To install the chassis fan, reverse the removal procedure.
