7–14 360201-002 Service Reference Guide, dc5000
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

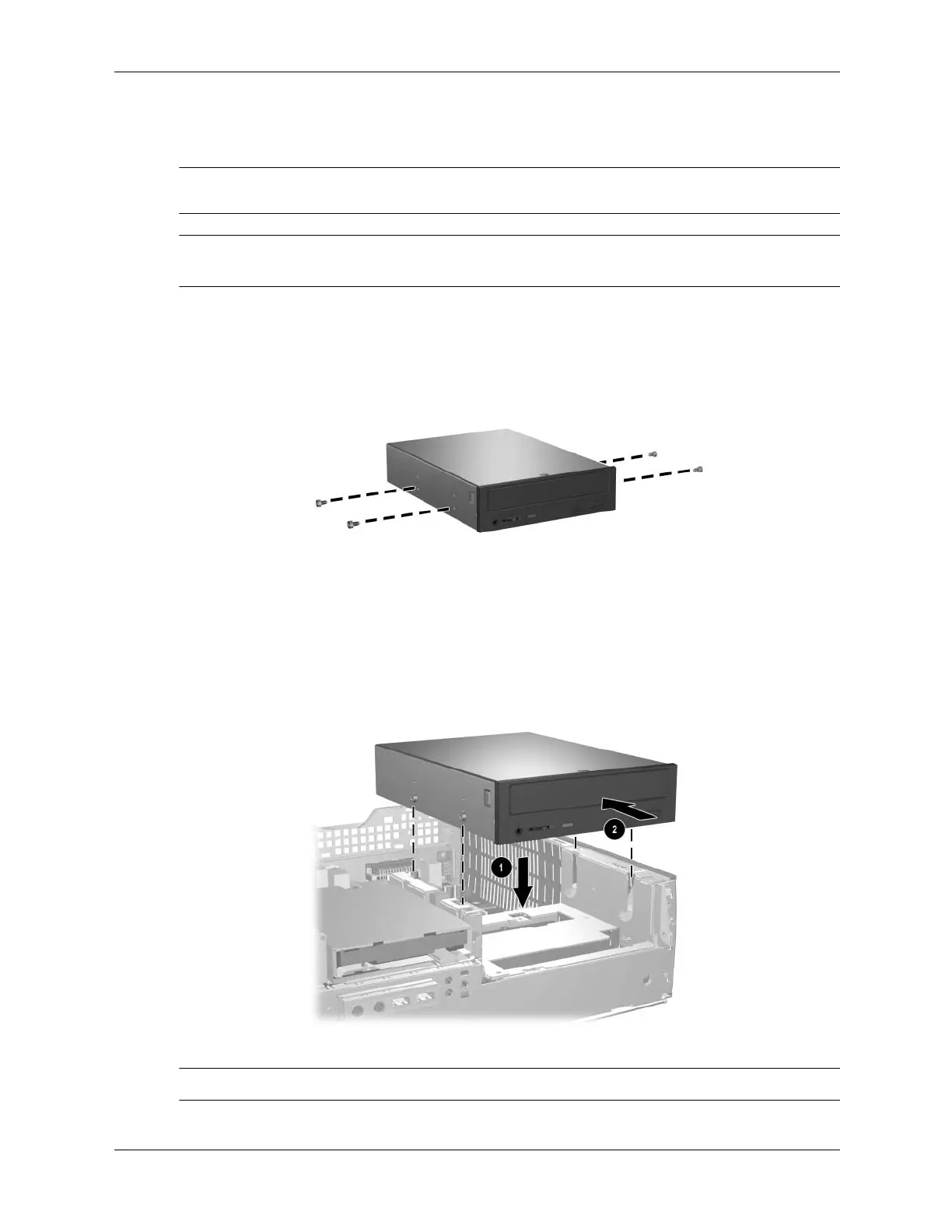

To replace the drive:
1. Install two guide screws in the lower holes on each side of the drive.
Ä
CAUTION: Use only 3/16-inch or 5-mm long screws as guide screws. Longer screws can damage the
internal components of the drive.
✎
When replacing the drive, transfer the four screws from the old drive to the new one. The screws
take the place of drive rails.
2. Position the guide screws on the drive into the J-slots in the drive bay 1. Then, slide the drive
towards the rear of the computer 2.
✎
The drive release latch automatically locks in place when installing a drive.
