Service Reference Guide, dc5000 360201-002 7–19
Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

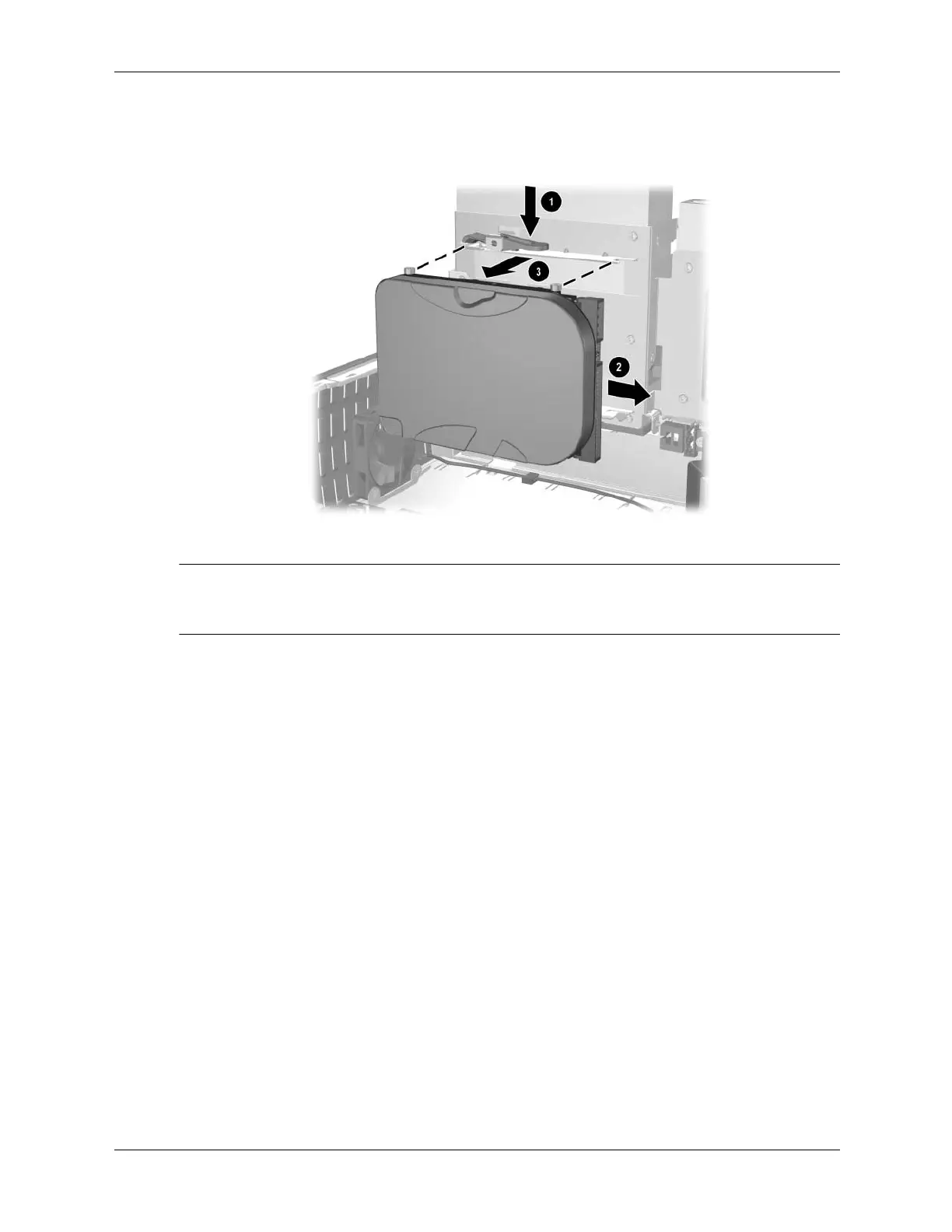

6. Press and hold the drive release latch 1.
7. Slide the drive to the right of the bay 2, then pull the drive from the bay 3.
To replace the hard drive, reverse the above procedure.
✎
When replacing the hard drive, transfer the four screws from the old drive to the new one. The
screws take the place of drive rails. You will need a Torx T-15 screwdriver to remove and
re-install the guide screws.
Make sure the drive cables are routed properly (Section 7.8.2, “Cable Routing”) before rotating
the drive cage to its original position.
