6–18 360201-002 Service Reference Guide, dc5000
Removal and Replacement Procedures— Microtower (µT) Chassis

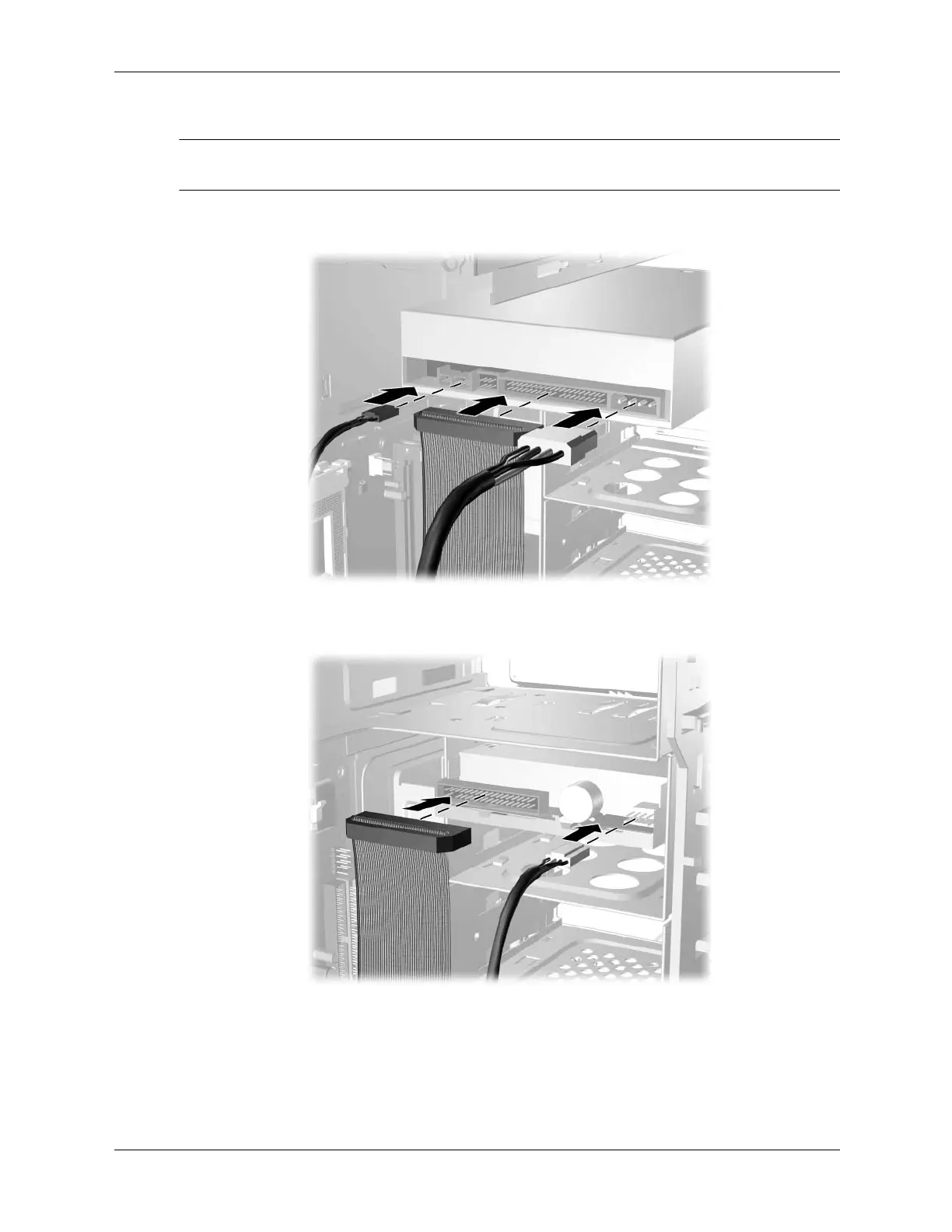

3. Reconnect the power and data cables to the drive as shown in the following illustrations.
✎
Refer to Chapter 4, “Ultra ATA Drive Guidelines and Features,” and Section 4.3, “Drive
Installation Guidelines,” for information on attaching the cabling to get optimum performance.
Connecting Optical Drive Cables
Connecting Diskette Drive Cables
