HP Compaq dc7100 DT Technical Reference Guide

6-2 361834-002 Technical Reference Guide
Integrated Graphics Subsystem
6.2 Functional Description
The Intel 915G/GV GMCH component includes an integrated graphics controller (IGC). (Figure
6-1). The IGC can directly drive an external, analog multi-scan monitor at resolutions up to and
including 2048 x 1536 pixels. The IGC includes a memory management feature that allocates
portions of system memory for use as the frame buffer and for storing textures and 3D effects.
The IGC provides two SDVO channels that are multiplexed through the PCI Express graphics
interface. These SDVO ports may be used by an Advanced Digital Display (ADD2) card
installed in the PCI Express graphics slot in driving two digital displays with a 200-megapixel
clock.
The SSF, ST, MT, and CMT sytems may be upgraded by installing a separate PCI-E graphics
card in the PCI Express x16 slot, which disables the onboard IGC. All systems may be also be
upgraded by installing a PCI graphics card in teh PCI 2.3 slot.

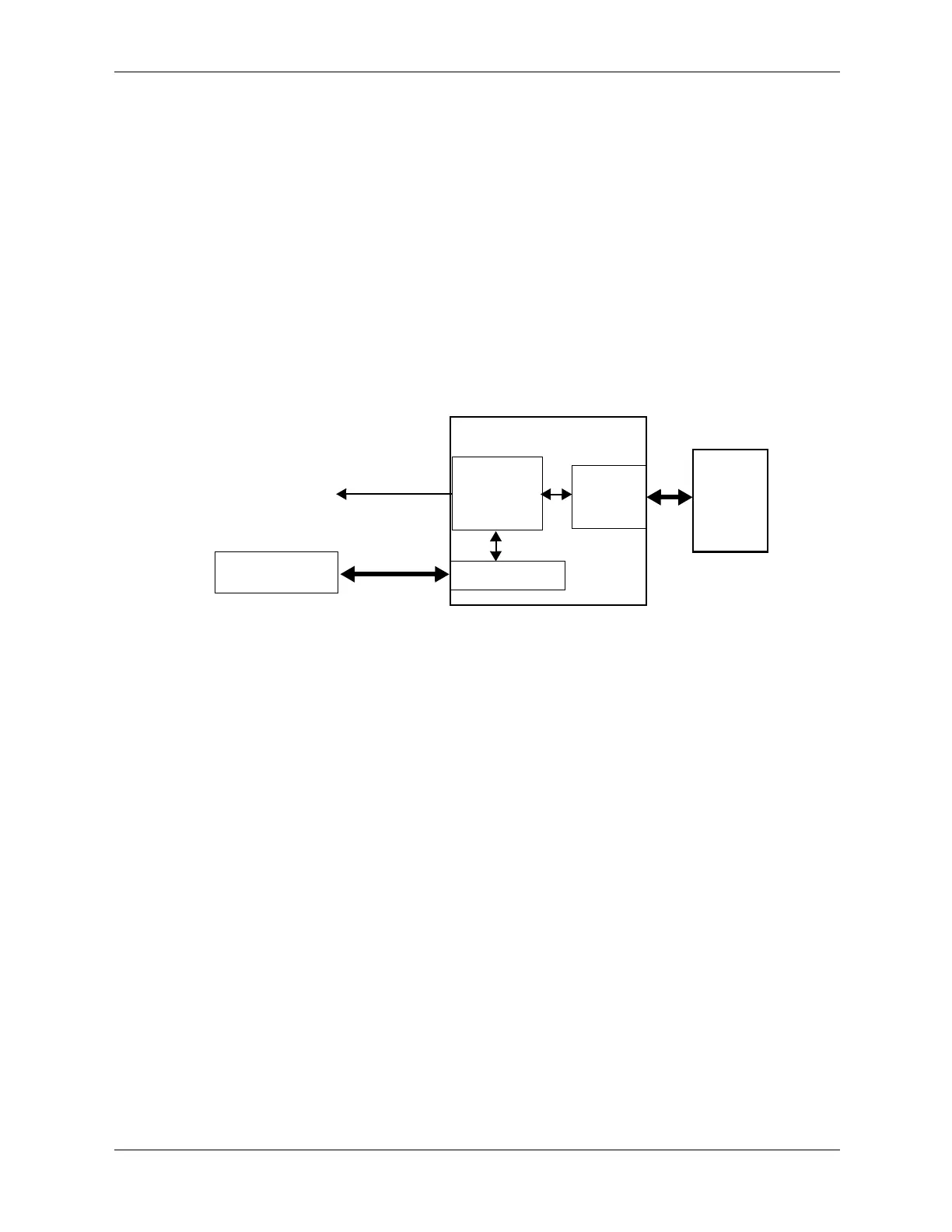

Figure 6-1. 915G-Based Graphics, Block diagram
The Integrated Graphics Controller provides the following functions:
■ Rapid pixel and texel rendering using special pipelines that allow 2D and 3D operations to
overlap, speeding up visual effects, reducing the amount of memory for texture storage.
■ Zone rendering for optimizing 3D drawing, eliminating the need for local graphics memory
by reducing the bandwidth.
■ Dynamic video memory allocation, where the amount of memory required by the application
is acquired (or released) by the controller.
■ Intelligent memory management allowing tiled memory addressing, deep display buffering,
and dynamic data management.
■ Provides two serial digital video out (SDVO) channels for use by an appropriate ADD2
accessory card.
RGB
Integrated
82915G/GV GMCH
Graphics
Controller
Monitor
(System
DDR
PCI Expr. I/F [2]
PCI Express x16
SDRAM
Controller
SDRAM
Memory)
Graphics slot [1]
NOTE:
[1] SFF, ST, MT, and CMT form factors only
PCI-E
& SDVO Data
[2] 82915G GMCH only

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
