HP Compaq dc7100 DT Technical Reference Guide

Technical Reference Guide 361834-002 2-19
System Overview
2.3.3 Board Layouts
Figures 2-16 through 2-18 show the system and expansion boards for these systems.

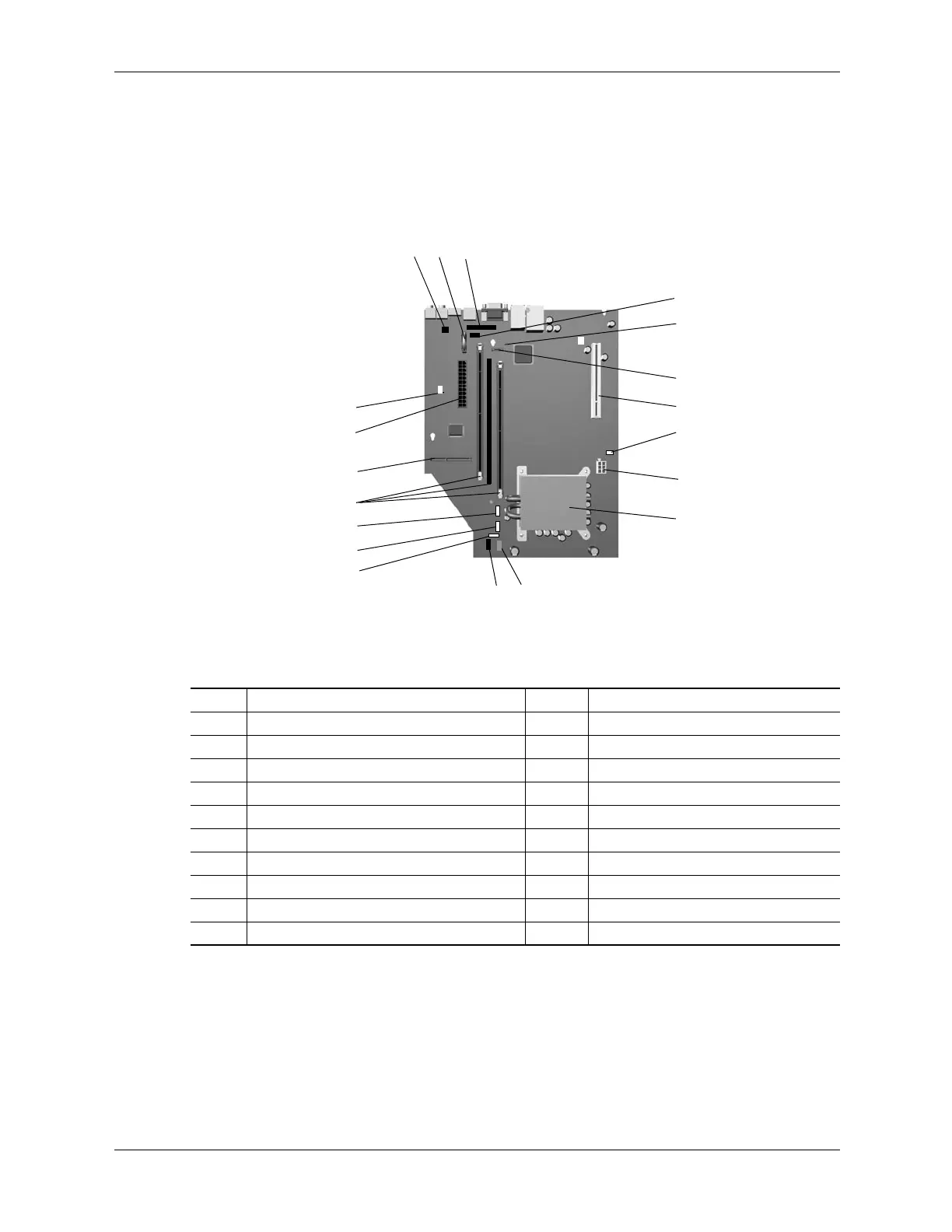

Figure 2-16. USDT System Board
Item Description Item Description
1 Hood sense header 11 Power button, power LED, HD LED header
2 Battery 12 Front panel audio connector
3 Parallel port option header 13 Front panel USB port connector
4 Serial port A header 14 Chassis fan, secondary connector
5 Password clear jumper header 15 Chassis fan, primary connector
6 SATA #0 header 16 DIMM sockets (3)
7 PCI 2.3 slot 17 MultiBay riser connector
8 Intenal speaker header 18 Power supply connector
9 Power supply (VccP) connector 19 Auxiliary audio input connector
10 Processor socket -- --
q
6
7
8
-
9
w
r
e
t
y
u
i
o
1
2
3
4
5
NOTE: See USDT rear chassis illustrations for externally accessible I/O connectors.

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
