HP Compaq dc7100 DT Technical Reference Guide

Technical Reference Guide 361834-002 2-17
System Overview
Microtower Chassis

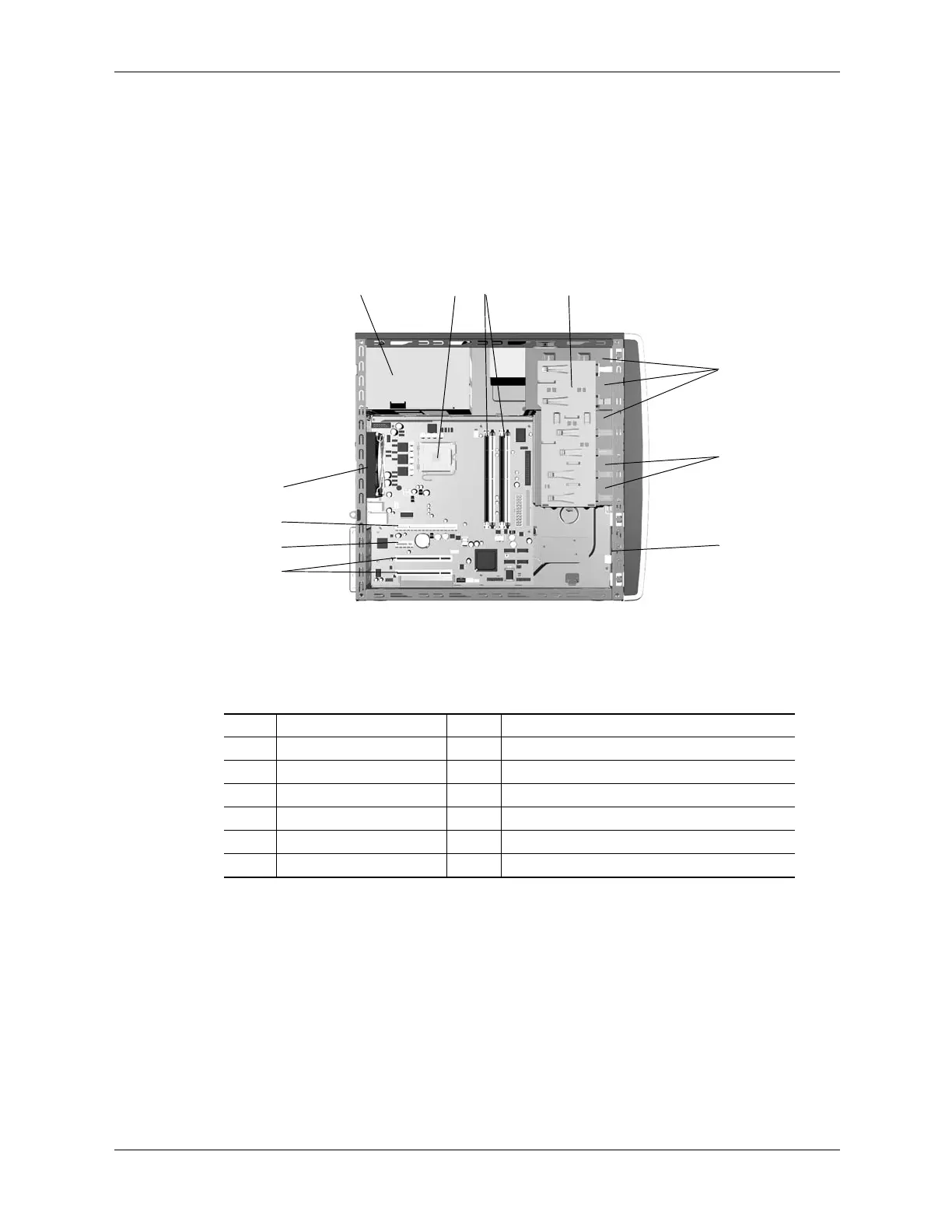

Figure 2-14 shows the layout for the Microtower (MT) chassis used for the HP Compaq dx6100
models. Features include:
■ Externally accessible drive bay assembly.
■ Easy access to expansion slots and all socketed system board components.
NOTE:
[1] Accepts PCI-E graphics or normal-layout ADD2 card.
Figure 2-14. MT Chassis Layout, Left Side View
1
3
4
5
6
2
7
-
8
9
q
Item Description Item Description
1 Power supply assembly 7 Speaker
2 Processor socket 8 PCI 2.3 slots
3 DIMM sockets (4) 9 PCI Express x1 slot
4 DriveLock 10 PCI Express x16 graphics/normal-layout SDVO slot [1]
5 Externally accessible drive bays 11 Chassis fan
6 Internally accessible drive bays -- --

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
