HP Compaq dc7100 DT Technical Reference Guide

Technical Reference Guide 361834-002 2-15
System Overview
2.3.2 Chassis Layouts
This section describes the internal layouts of the chassis. For detailed information on servicing
the chassis refer to the multimedia training and/or the maintenance and service guide for these
systems.
UIltra Slim Desktop Chassis
The Ultra Slim Desktop (USDT) chassis used for the HP Compaq dc7100 models uses a
compact, space-saving form factor.

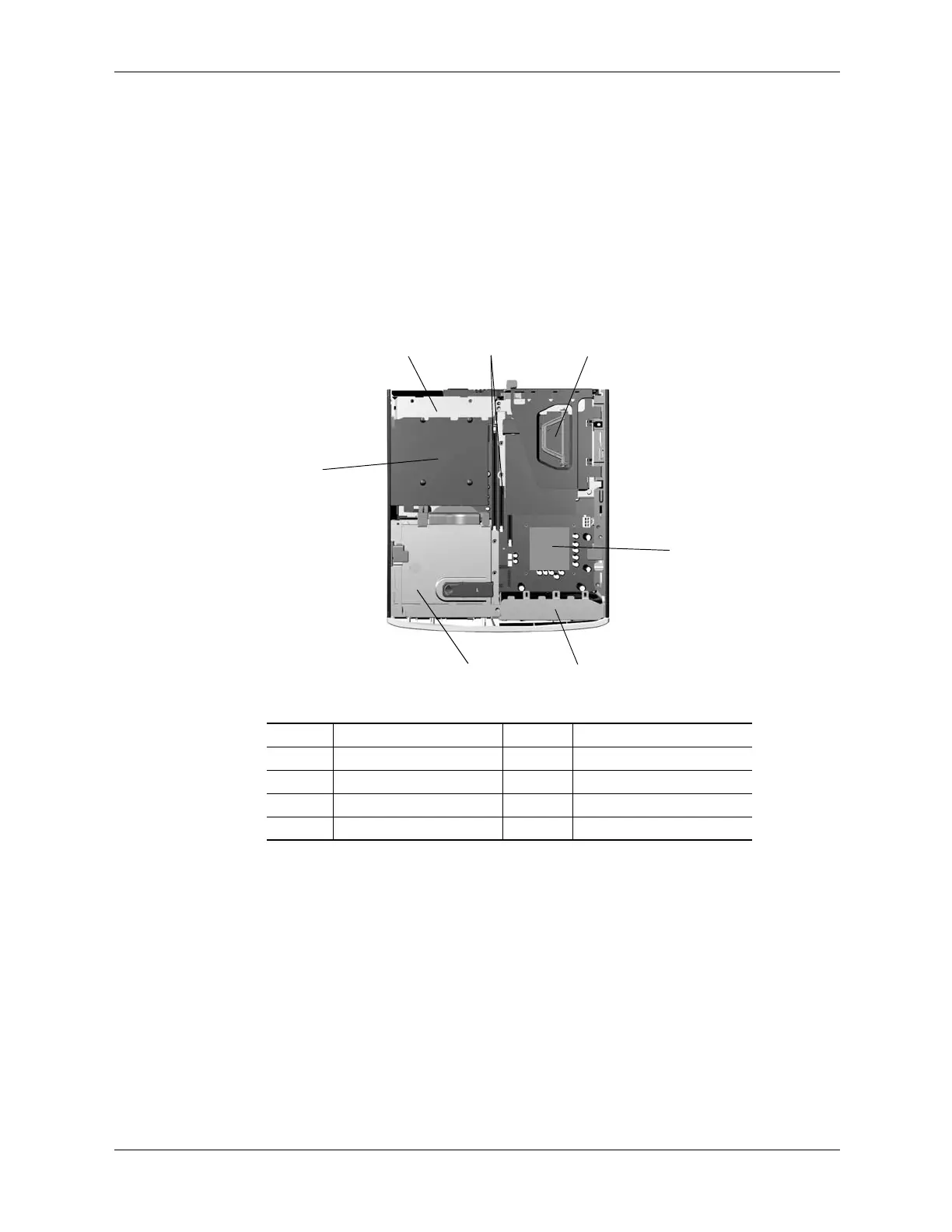

Figure 2-12. USDT Chassis Layout, TopView
Item Description Item Description
1 Power supply assembly 5 Chassis fan
2 DIMM sockets (3) 6 MultiBay device
3 PCI card cage 7 Hard drive
4 Processor socket -- --
1
3
4
5
6
2
7

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
