HP Compaq dc7100 DT Technical Reference Guide

Technical Reference Guide 361834-002 2-23
System Overview

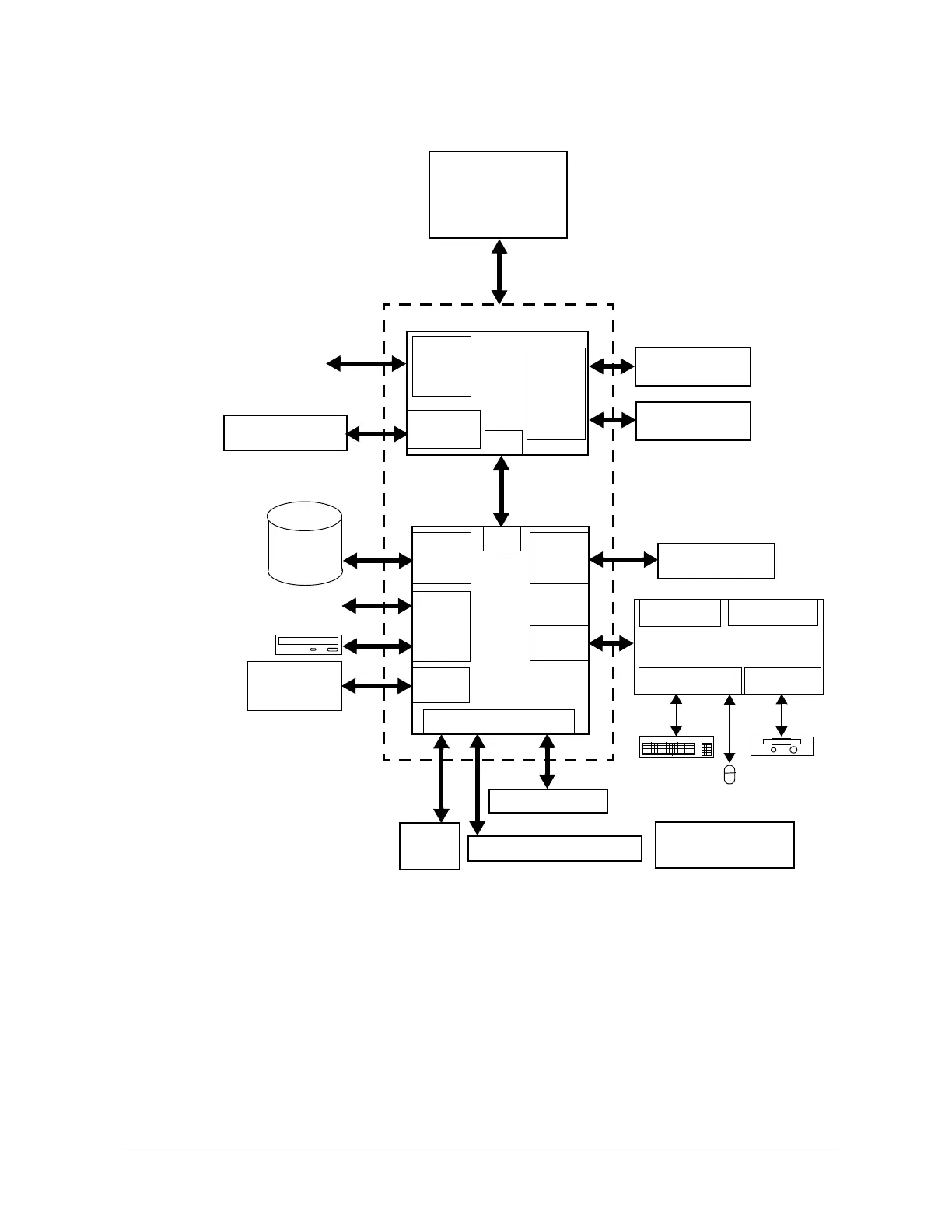

Figure 2-19 System Architecture, Block diagram
Parallel I/F [1]
Pentium 4
Processor
915G/GV Chipset
915 [2]
82801
GMCH
SDRAM
Cntlr
PCI Exp.
PEG I/F [1]
PCI Express
ICH6
SATA
I/F
USB
I/F
Ch A DDR/DDR2
SDRAM
Ch B DDR/DDR2
SDRAM
LPC47B397
I/O Cntlr.
Graphics
Cntlr.
RGB
Monitor
Hard Drive
USB Ports 1-8
Serial I/F [1]
Diskette I/F
Kybd-Mouse I/F
x16 slot (PEG)[1]
PCI Express x1 slot [1]
SATA
AC97 Audio
Subsystem
I/F
PATA
PCI 2.3 slot(s)
Keyboard
NIC
I/F
Mouse
Floppy
CD-ROM
AC97 I/F
LPC I/F
PCI Cntlr.
MultiBay Device
DMI
DMI
Power Supply
Note:
[1] SFF, ST, MT, and CMT form factors only.
[2] 82915GV for USDT form factor
82915G for SFF. ST. MT, and CMT form factors

HP Compaq dc7100 DT Specifications

General

Processor Speed	Up to 3.8 GHz
Chipset	Intel 915G
Memory	Up to 4 GB DDR2 SDRAM
Operating System	Windows XP Professional
Form Factor	Desktop
Processor	Intel Pentium 4
Storage	40 GB to 160 GB SATA
Graphics	ATI Radeon X300 SE
Optical Drive	DVD-ROM
Audio	Integrated audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16
Ports	1 Parallel, 1 Serial, 2 PS/2, 1 VGA
