Front components
NOTE: Front components are the same for 6300 and 8300 models.

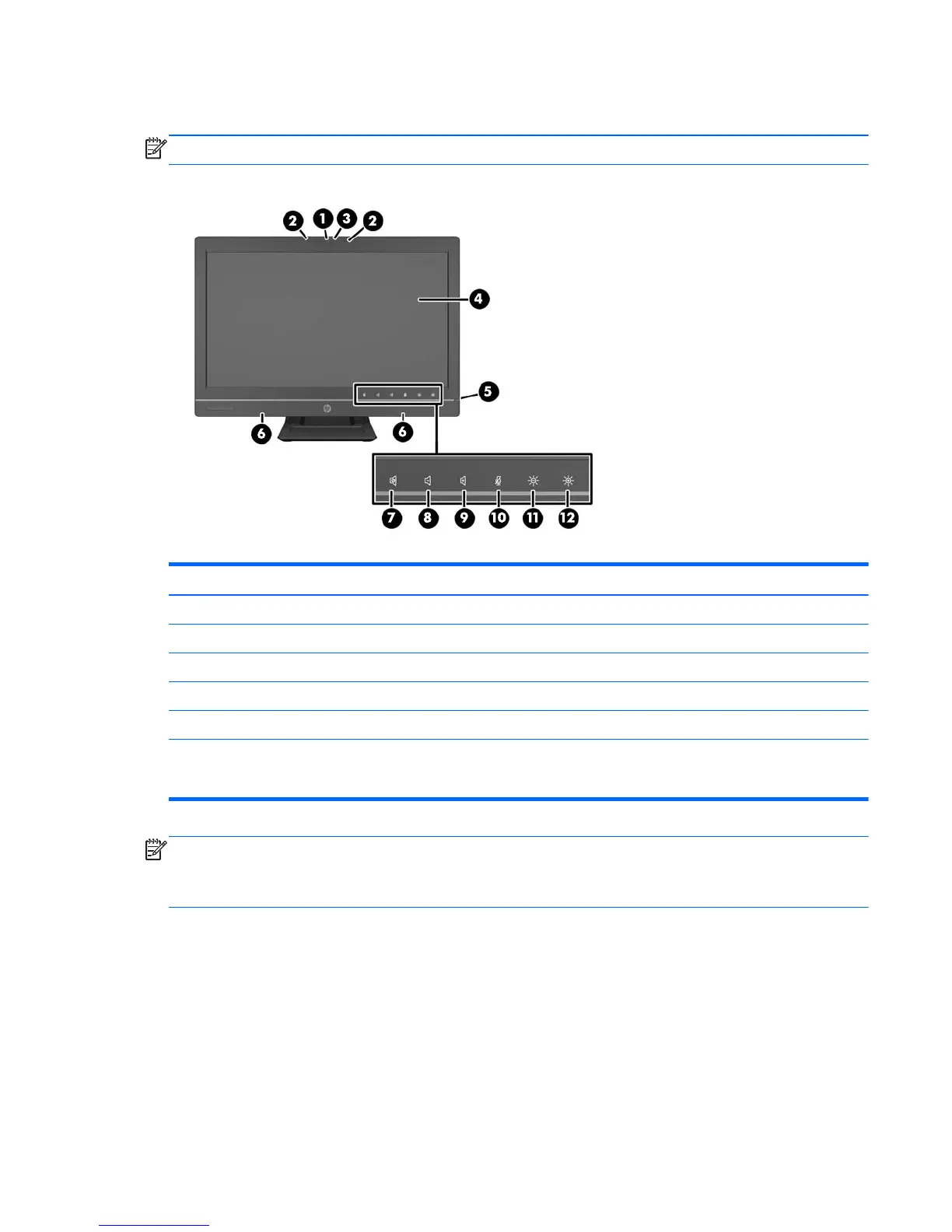

Figure 1-2 Front components
Table 1-1 Front components
Component Component
1 Webcam with privacy shutter (optional) 7 Mute speaker
2 Dual microphone array (with optional webcam) 8 Reduce volume
3 Webcam activity LED (with optional webcam) 9 Increase volume
4 16:9 widescreen LED-backlit LCD display 10 Mute microphone
5 Power LED 11 Decrease brightness
6 High-performance stereo speakers
NOTE: No speaker option available.
12 Increase brightness
NOTE: To wake touch panel equipped systems from Stand by, swipe the screen or touch the
screen and hold for at least one second.
To wake the systems from Hibernate, press the power button and release.
Touch the icon area (7–12 above) to cause the icons to illuminate, then touch an icon to activate it.
To change the volume or brightness, touch and hold the appropriate icon or touch it and repeat until
the volume or brightness has reached the desired level.
To mute the speaker or microphone, just touch the appropriate icon. The icon remains illuminated
until you touch it again to reactivate the speaker or microphone.
Front components 3
