Graphics board
The graphics board is secured with two Torx screws. Removing it allows access to the webcam and
allows you to remove the main rear cover.

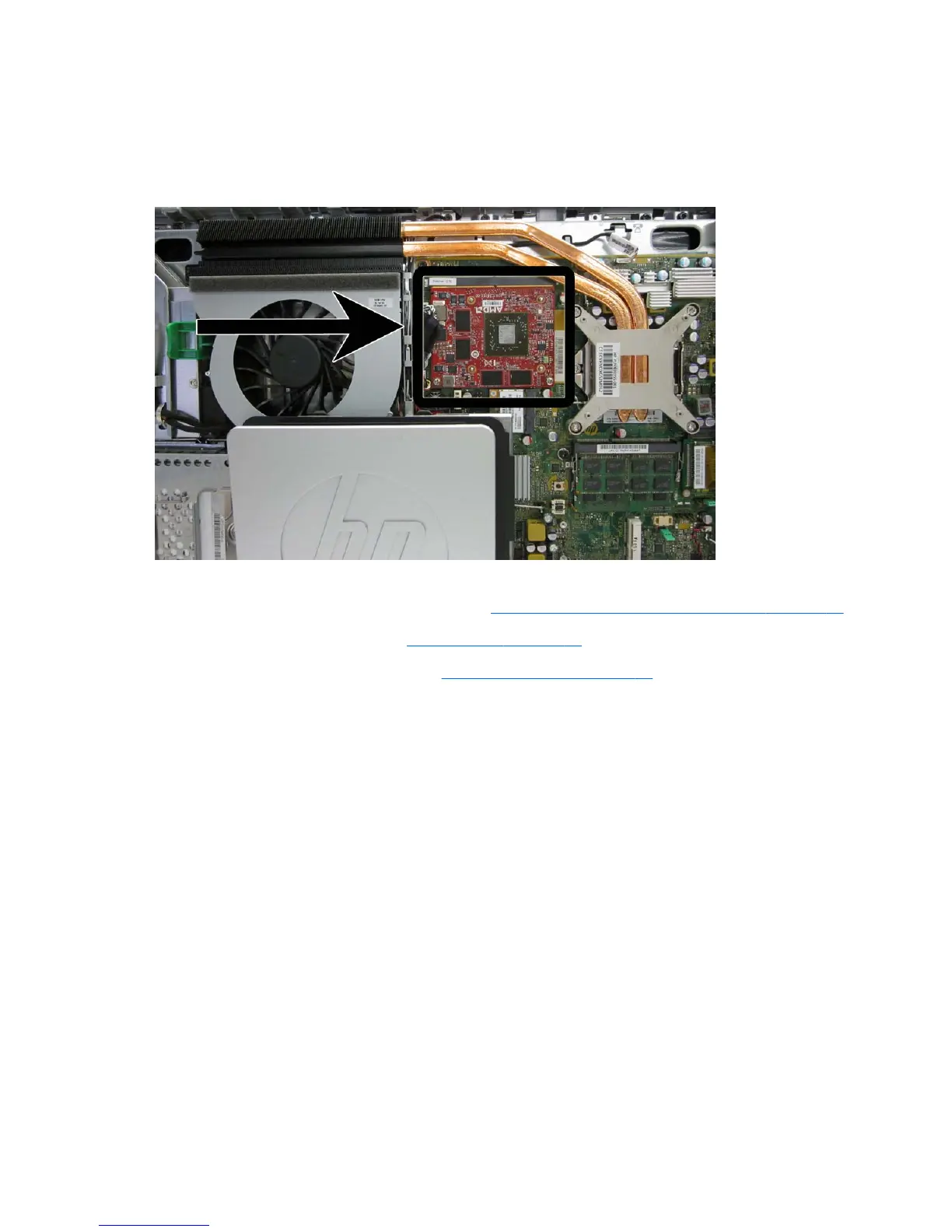

Figure 7-54 Graphics board location
To remove the graphics board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
3. Remove the graphics heat sink (see
Graphics heat sink on page 65).
4. Remove the two Phillips screws (1) that secure the board to the system board.
74 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
