4. Loosen the two silver captive Torx screws on the heat sink (2), and then lift the heat sink out of
the computer (3).
CAUTION: Remove heat sink retaining screws in diagonally opposite pairs (as in an X) to even
the downward forces on the processor. This is especially important as the pins on the socket are
very fragile and any damage to them may require replacing the system board.
CAUTION: To reduce a degradation in thermal performance, be sure not to touch the thermal
grease on the surface of the processor or the heat sink.

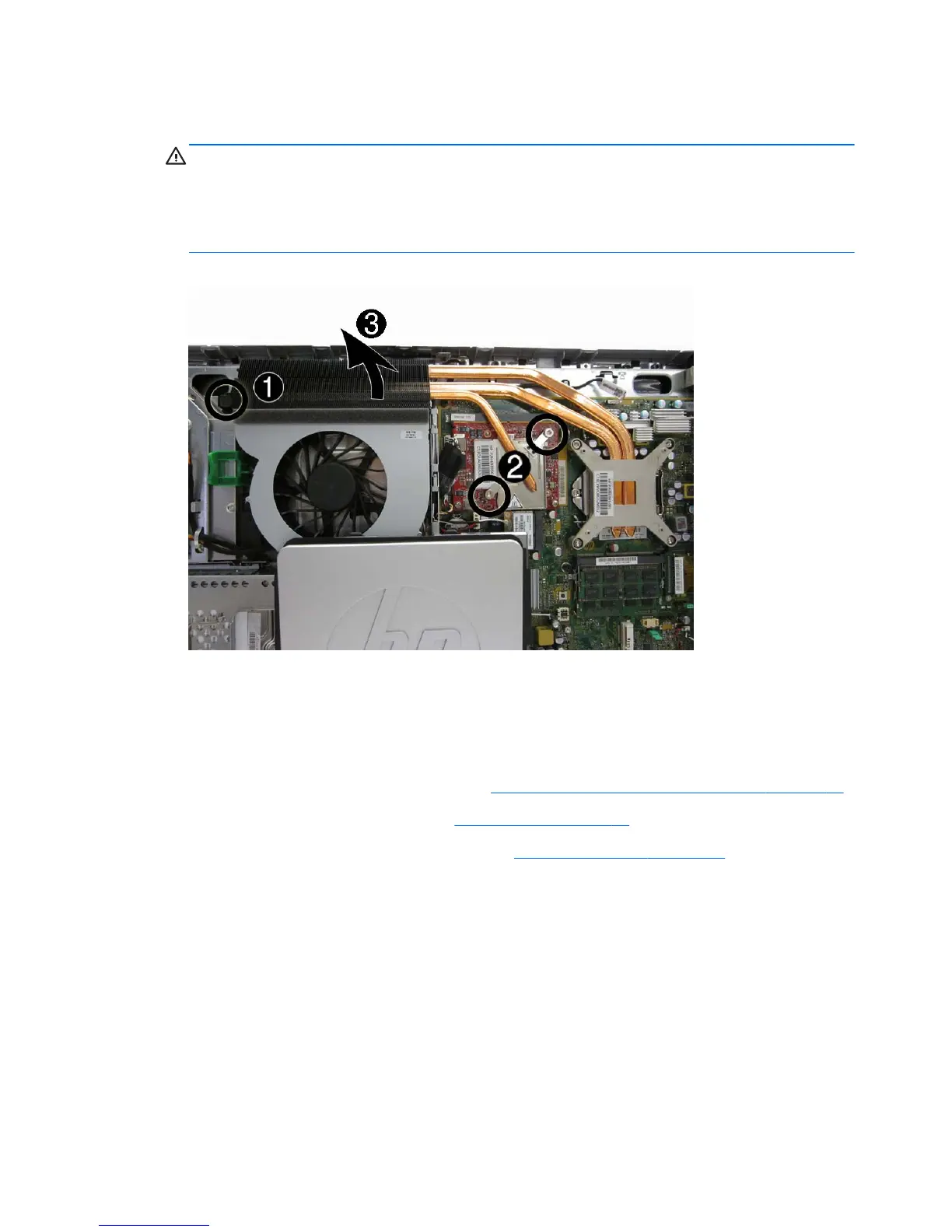

Figure 7-45 Removing the graphics heat sink
To replace the heat sink, reverse the removal procedures.
Processor heat sink – model 6300
To remove the heat sink:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the center access panel (see
Access panel on page 36).
3. If installed, remove the graphics heat sink (see
Graphics heat sink on page 65).
66 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
