Card reader board
The card reader board is located on the right side of the system board. It is secured with two screws.

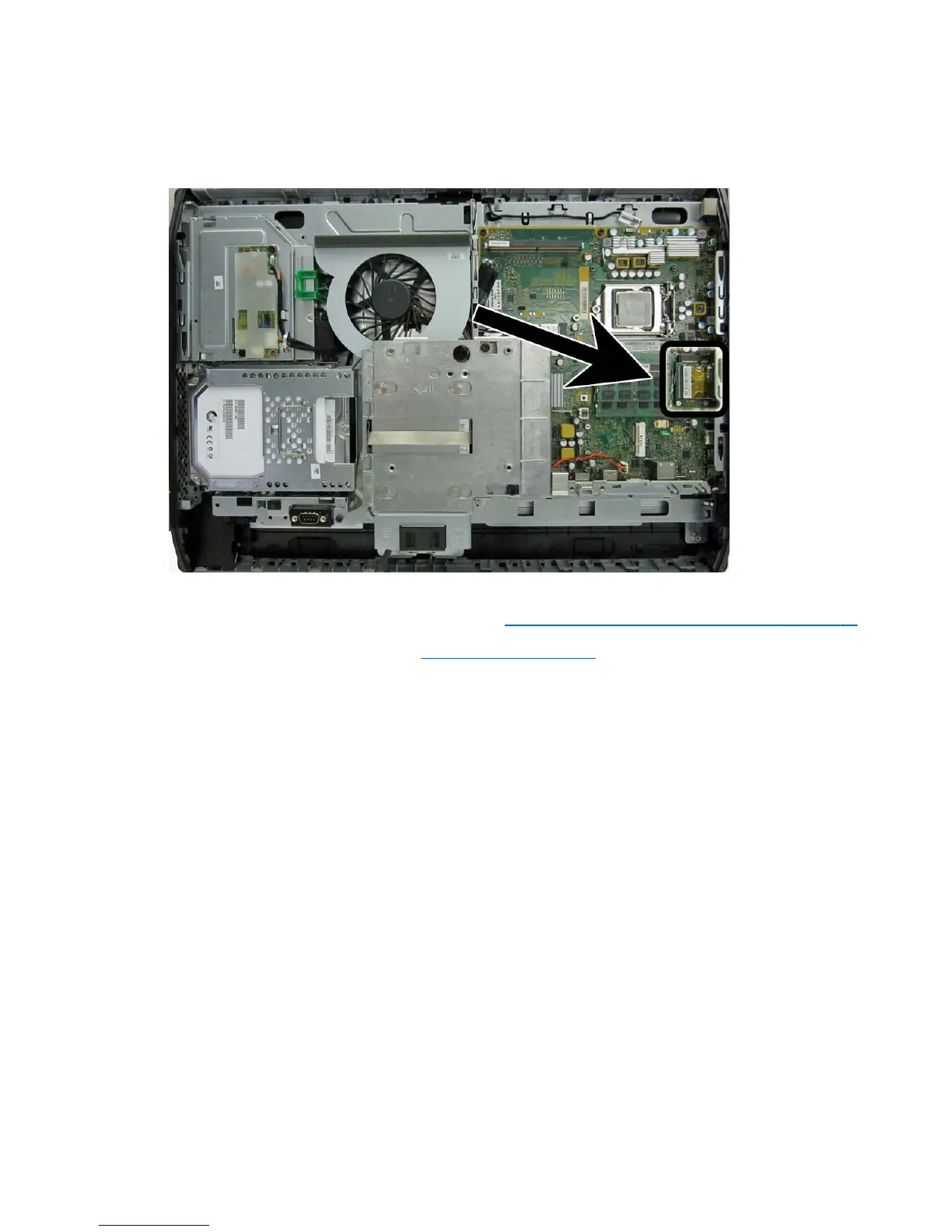

Figure 7-67 Card reader board location
To remove the card reader board:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
