Metal plate
The metal plate is located under the stand.

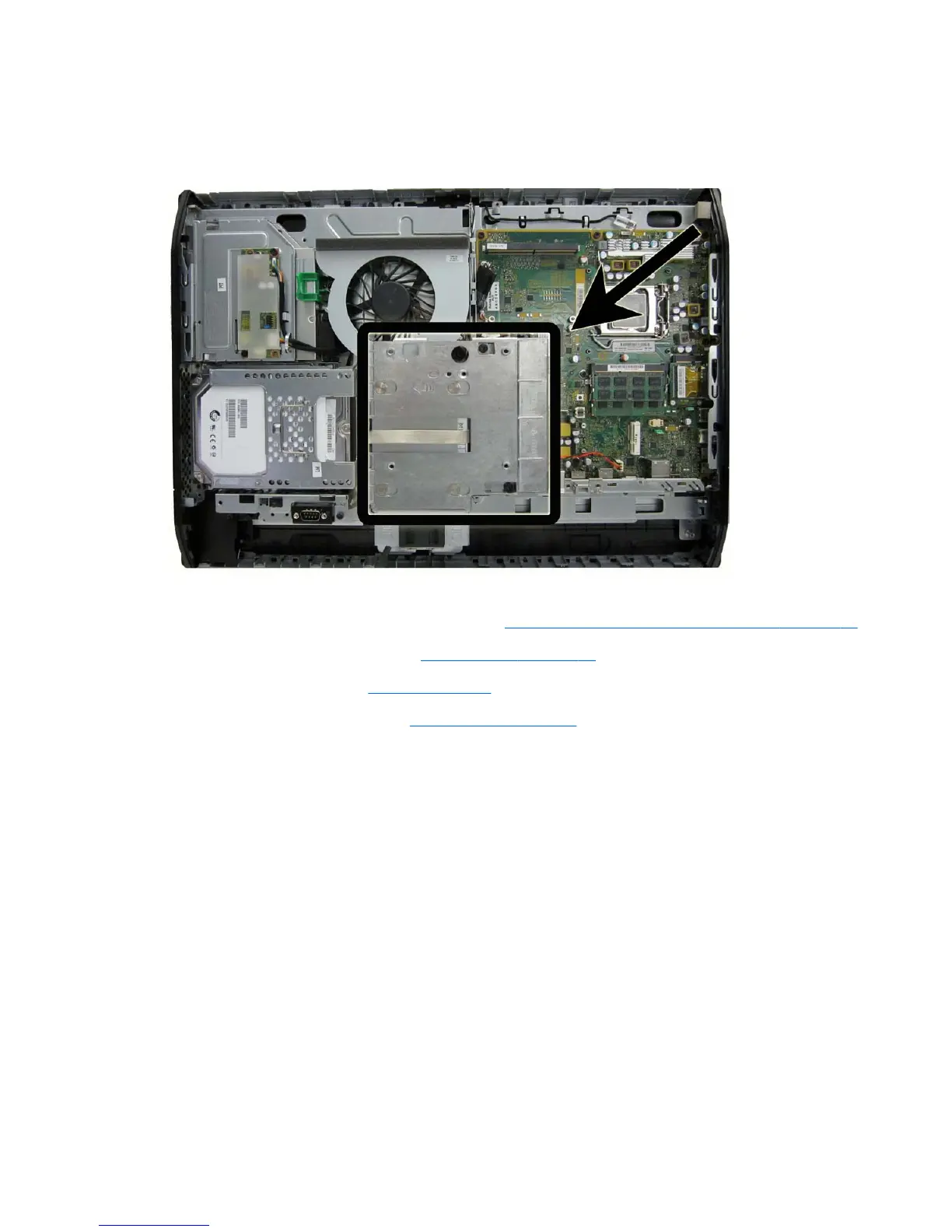

Figure 7-14 Metal plate location
To remove the metal plate:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
3. Remove the stand (see
Stand on page 38).
4. Remove the lower panel (see
Lower panel on page 40).
5. Remove the two Torx screws (1) securing the metal plate to the chassis.
Metal plate 41
