HP Compaq Elite 8300 All-in-One User Manual

Webcam module
On products that ship with a webcam module, the module is located at the top of the computer
beneath the top panel. It is secured with two silver Phillips screws and has one connector.
The webcam module is optional.

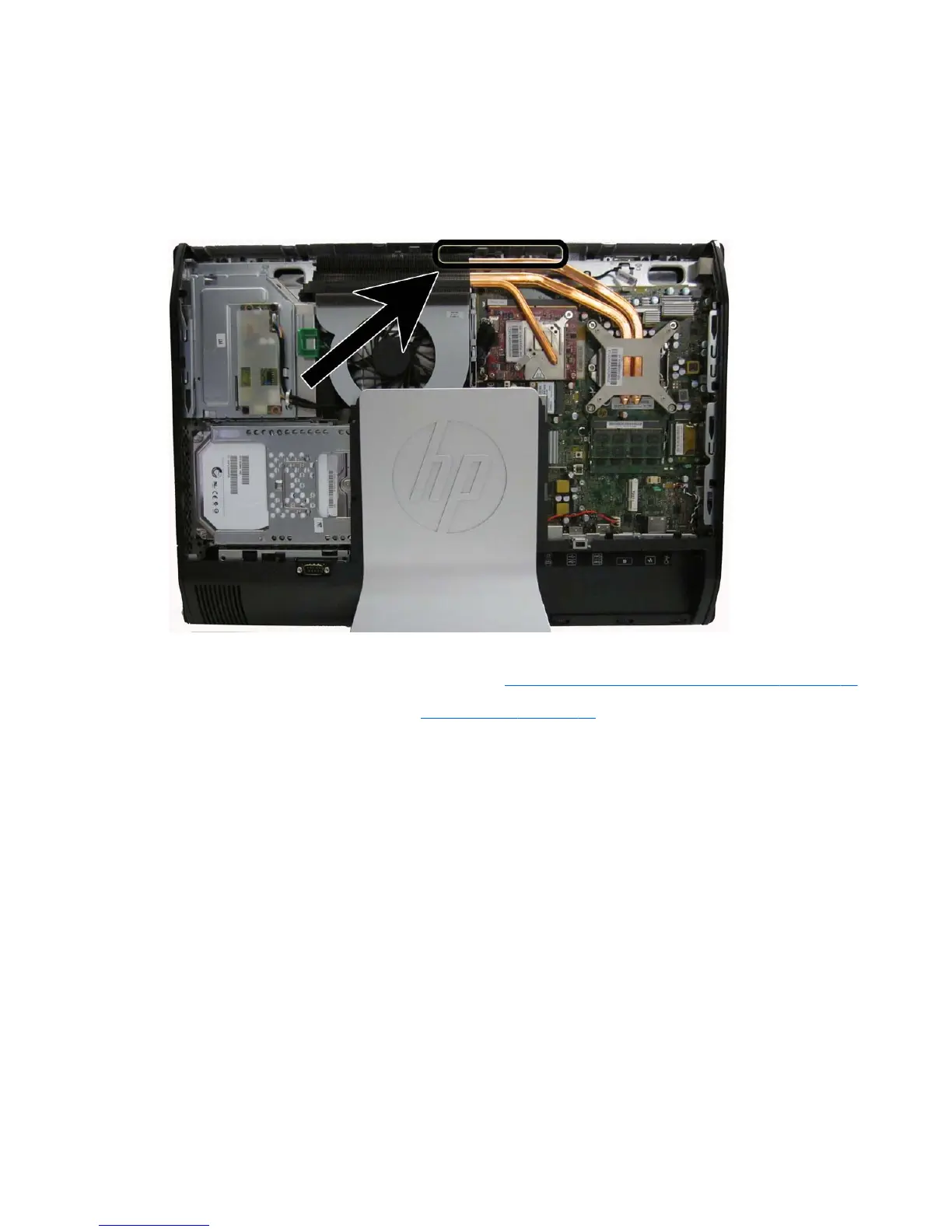

Figure 7-36 Webcam module location
To remove the webcam module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 32).
2. Remove the access panel (see
Access panel on page 36).
Webcam module 57

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
