HP Compaq Elite 8300 All-in-One

6. Remove the cable from its routing path (3), and remove the serial port assembly from the
computer.

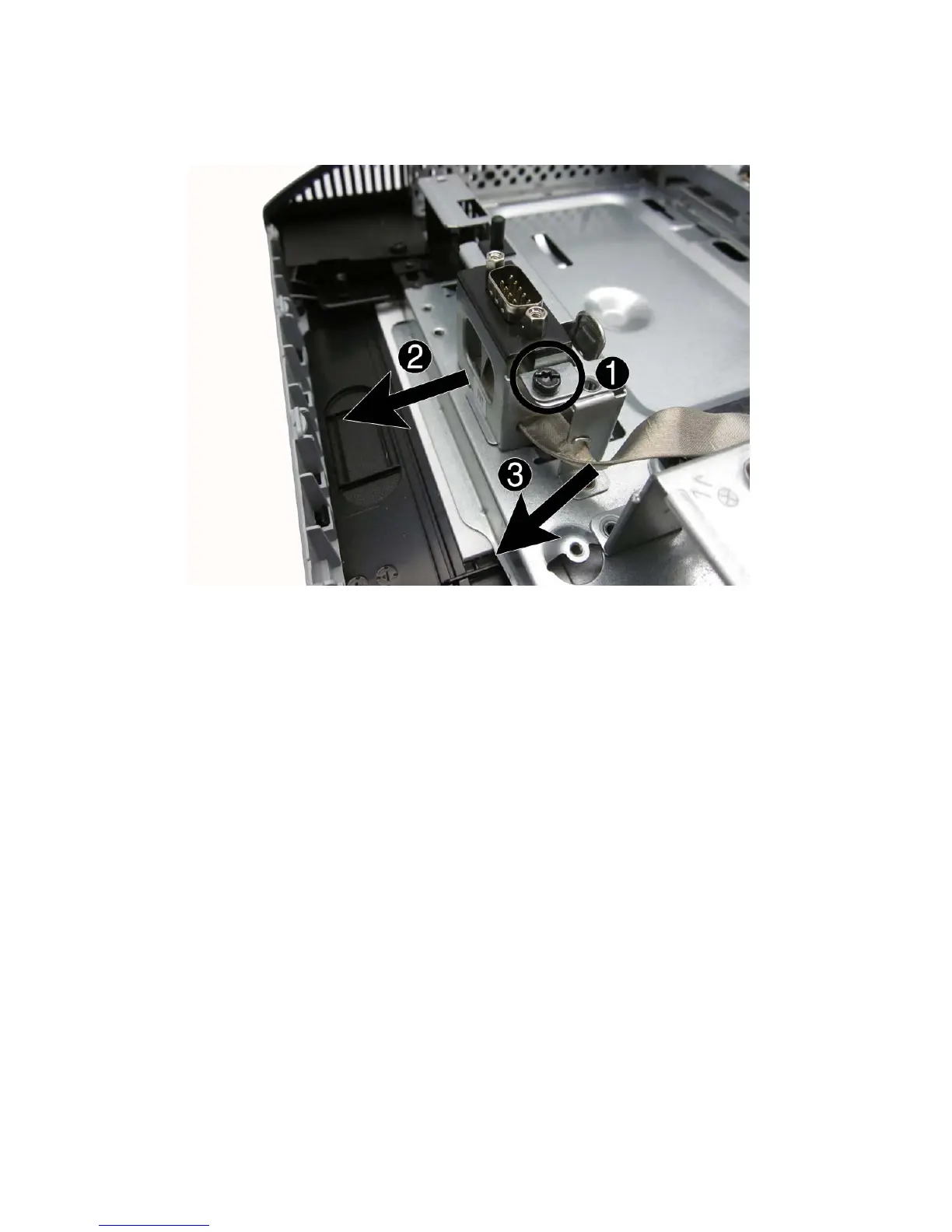

Figure 7-35 Removing the serial port
To install the serial port, reverse the removal procedures.
56 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
