HP Compaq Elite 8300 All-in-One

6. Slide the metal plate left to the left (2), and then lift it off the chassis (3).

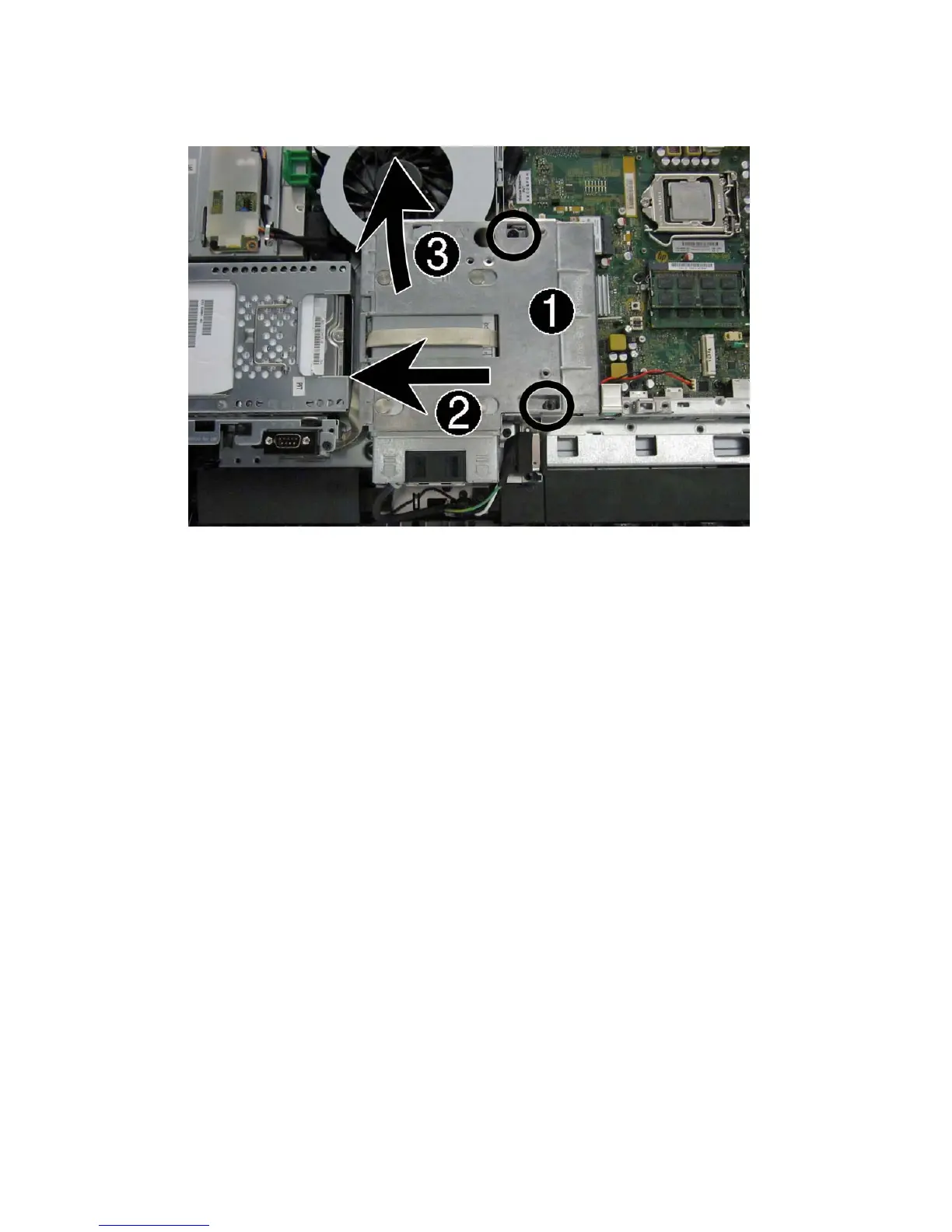

Figure 7-15 Removing the metal plate
To replace the lower panel, reverse the removal procedures.
42 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
