HP Compaq Elite 8300 All-in-One User Manual

5. Rotate the board upward (2), and then pull it up and away from the connector to remove it from
the computer (3).

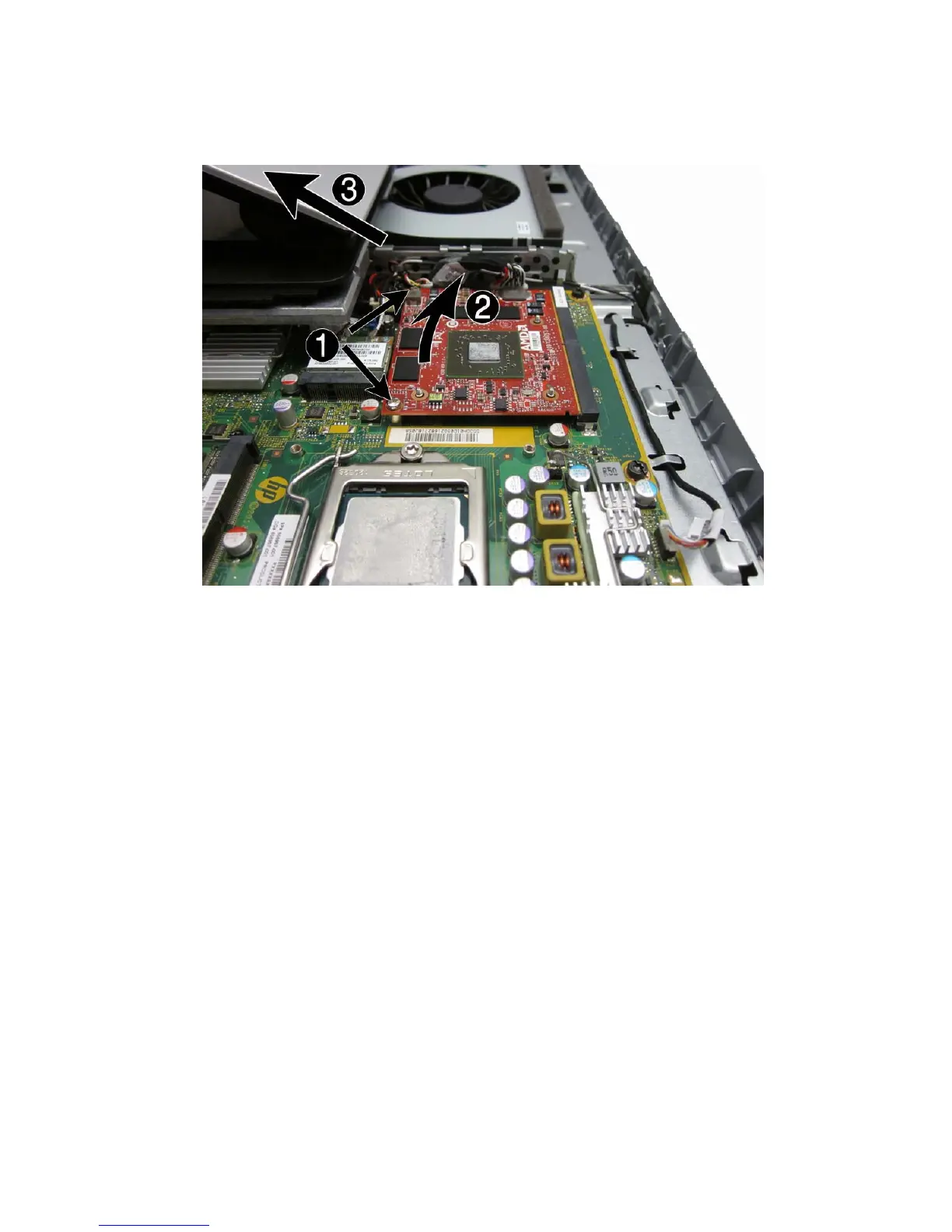

Figure 7-55 Removing the graphics board
To replace the graphics board, reverse the removal procedures.
Graphics board 75

HP Compaq Elite 8300 All-in-One Specifications

General

Brand	HP
Model	Compaq Elite 8300 All-in-One
Category	Desktop
Language	English
