HP Compaq Elite 8300 All-in-One User Manual

13. Disconnect the hard drive cables or the optical drive cables from the system board.
NOTE: Be careful not to damage the cable when disconnecting it from the board. Do not pull
on the wires.
14. Remove the connector from the computer.

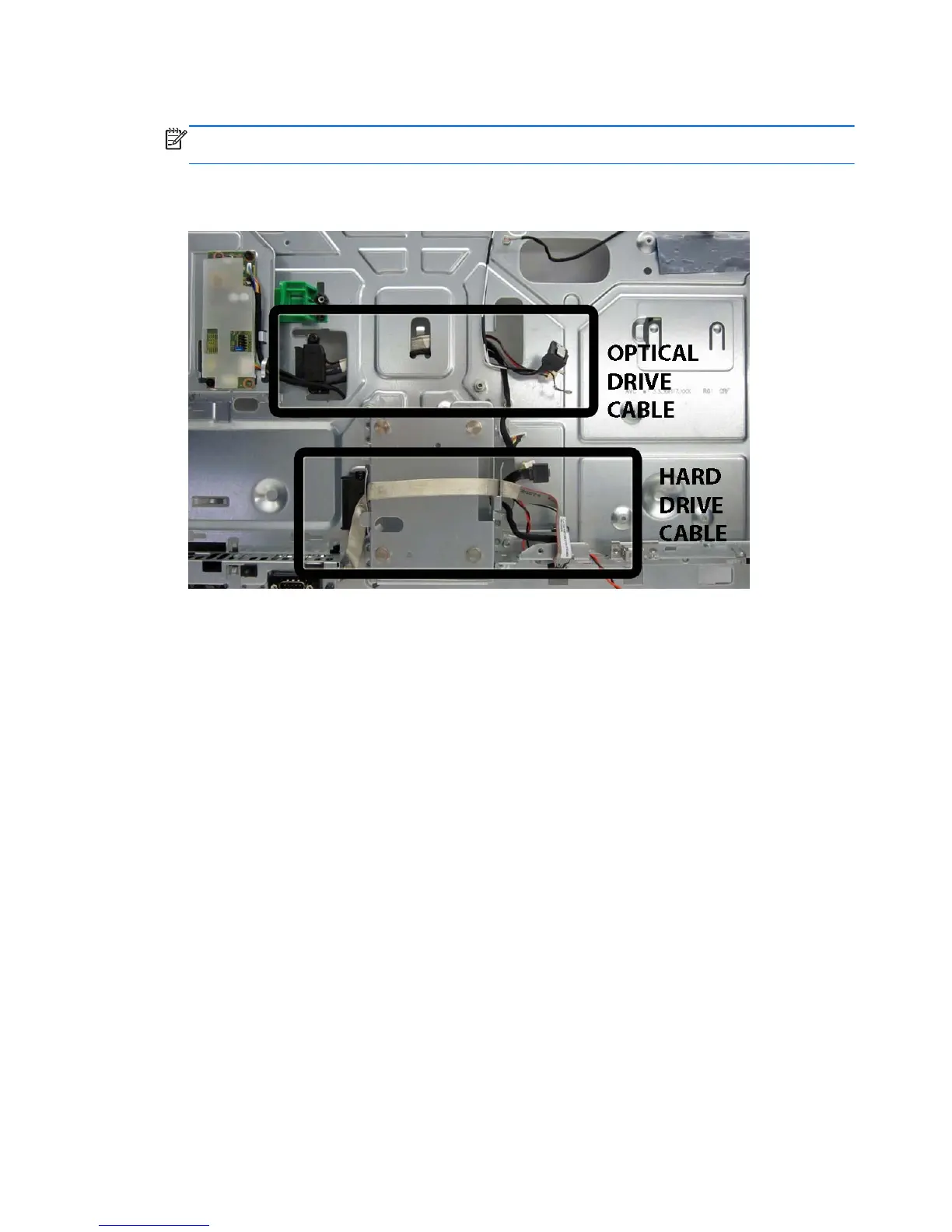

Figure 7-89 Removing the hard drive or optical drive connectors
To install the hard drive or optical drive connector, reverse the removal procedures.
108 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
