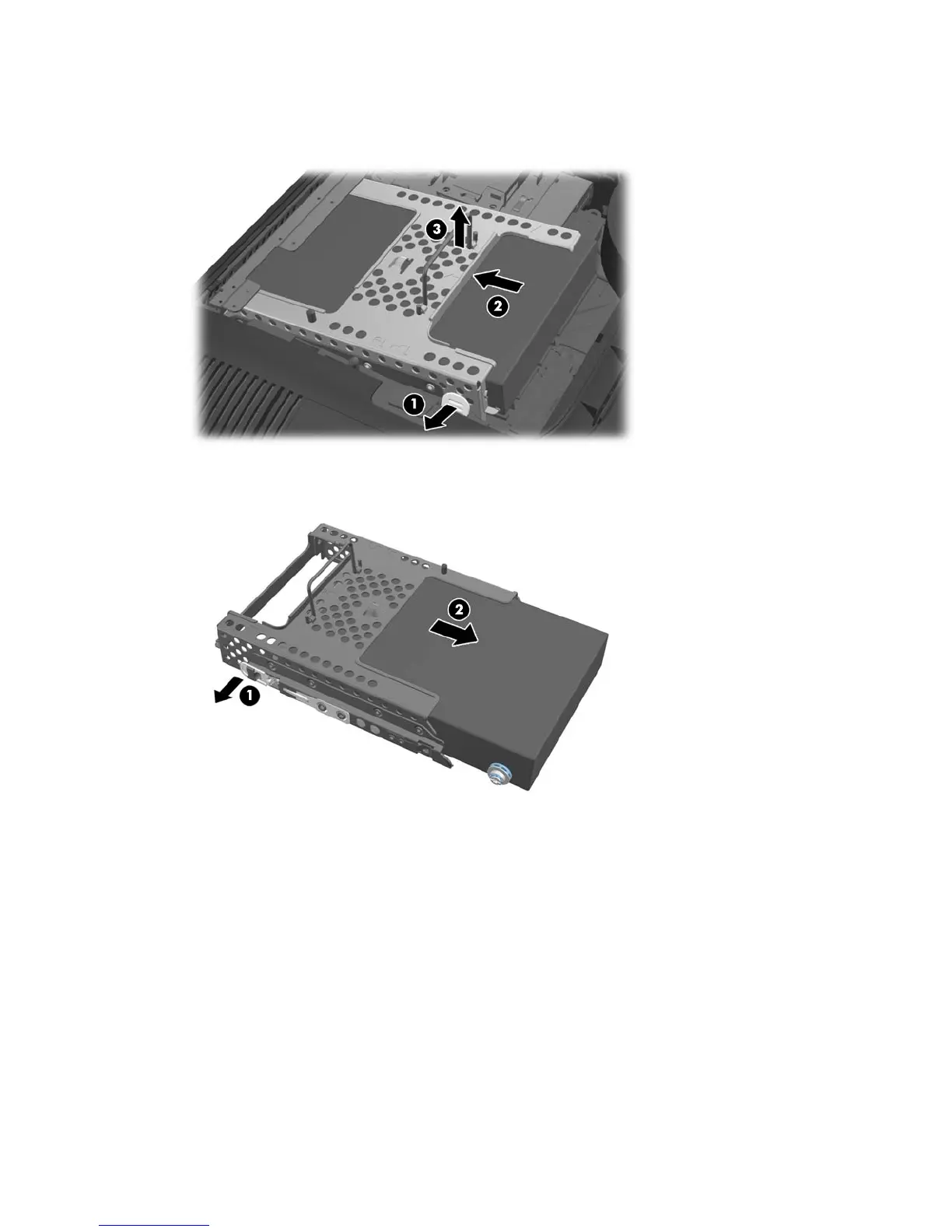

3. Pull the latch next to the lower side of the hard disc drive cage away from the cage to release it,
then slide the cage toward the edge of the chassis and lift it out.
Figure 7-17 Removing the hard disc drive cage
4. Lift the latch on one side of the hard disc drive cage and pull the hard disc drive out of the cage.
Figure 7-18 Removing the hard disc drive from the cage
44 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis

Table of Contents

Questions and Answers:

Question and Answer IconNeed help?

Do you have a question about the HP Compaq Elite 8300 All-in-One and is the answer not in the manual?

HP Compaq Elite 8300 All-in-One Specifications

General IconGeneral
RAMUp to 16 GB DDR3
NetworkIntegrated Intel 82579LM Gigabit Ethernet
ChipsetIntel Q77 Express
ProcessorIntel Core i5-3470S
Storage128 GB SSD, 256 GB SSD
Display23-inch Full HD (1920 x 1080)
GraphicsIntel HD Graphics 2500
Operating SystemWindows 7 Professional
Optical DriveDVD+/-RW SuperMulti
USB Ports6 x USB 2.0
Wireless802.11a/b/g/n
AudioIntegrated High Definition Audio, Internal Speaker
PortsVGA, DisplayPort, RJ-45, audio in/out
