HP Compaq Elite 8300 All-in-One User Manual

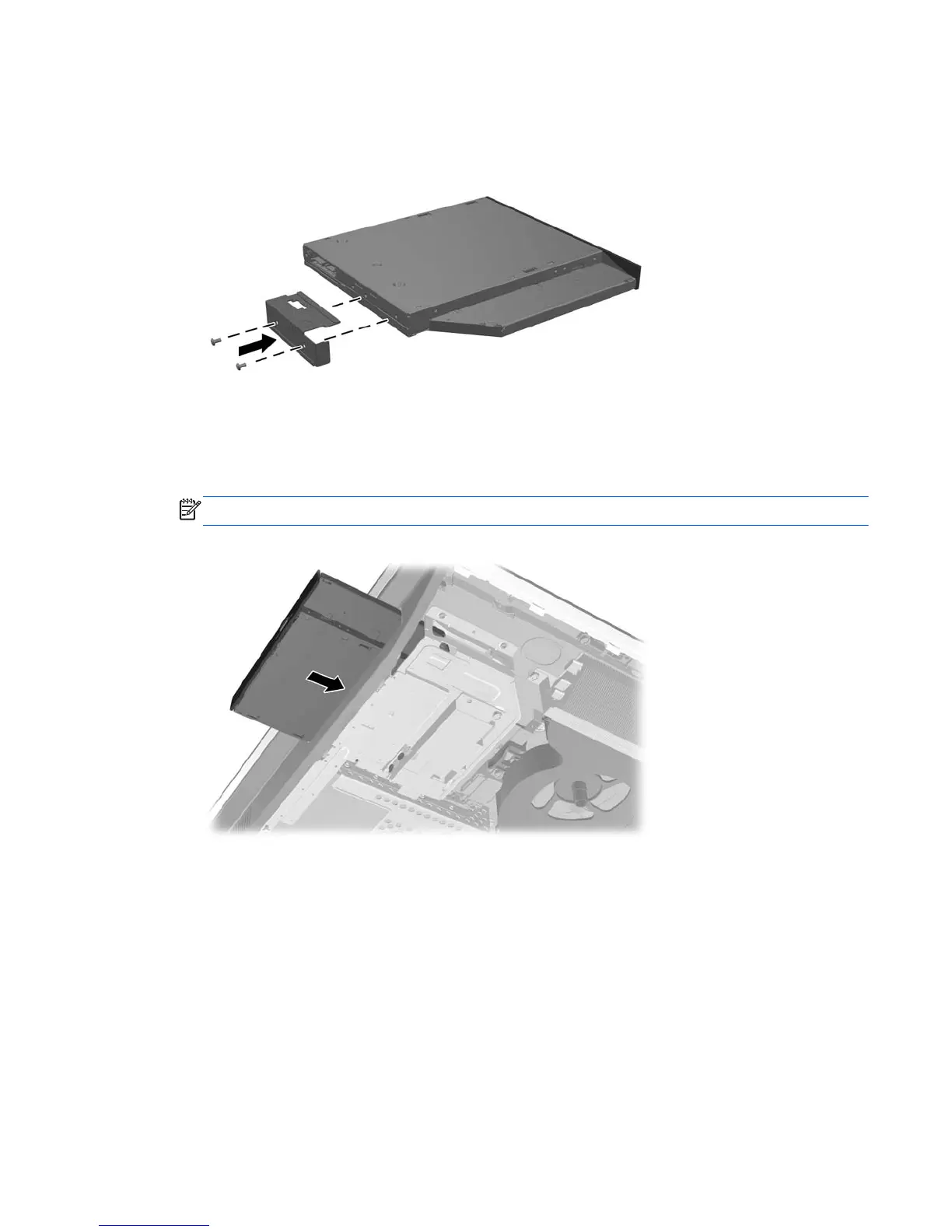

5. Secure the optical disc drive bracket to the new drive with the two screws.
Figure 7-26 Attaching the optical disc drive bracket
6. Align the new optical disc drive with the opening in the side of the computer. Push the drive in
firmly until it snaps into place.
NOTE: The optical disc drive can be installed in only one way.
Figure 7-27 Installing the optical disc drive
7. To replace the access panel, set the panel on the back of the computer, slightly above the stand,
and slide it down into place.
8. Reconnect the power cord and external devices.
9. Lock any security devices that were disengaged when the access panel was removed.
10. Turn on the computer.
Replacing drives 49

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
