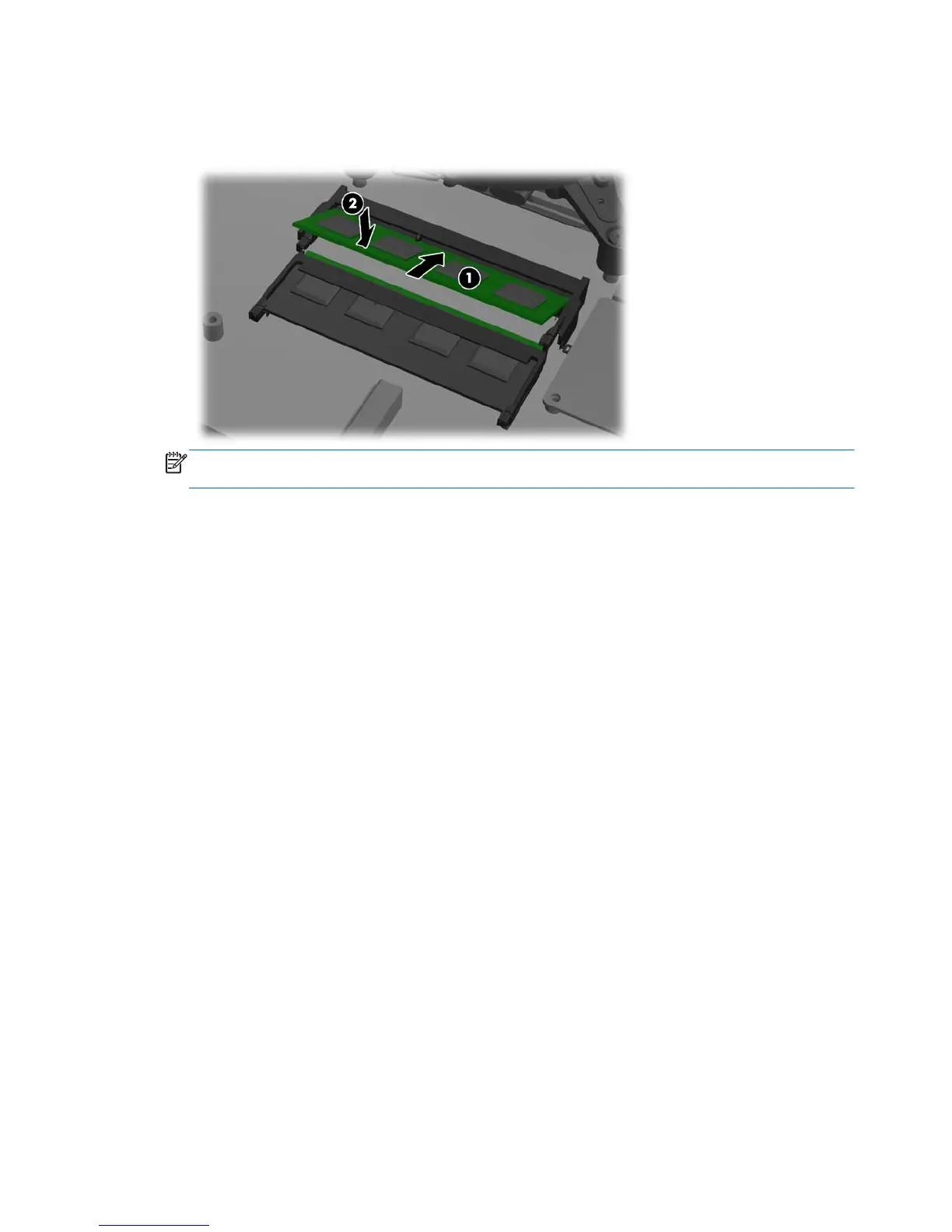

5. To install a memory module, slide the SODIMM into the socket at approximately a 30° angle (1),
then press the SODIMM down (2) so that the latches lock it in place.
Figure 7-30 Installing a memory module
NOTE: A memory module can be installed in only one way. Match the notch on the module
with the tab on the memory socket.
The computer automatically recognizes the additional memory when you turn on the computer.
52 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
