HP Compaq Elite 8300 All-in-One User Manual

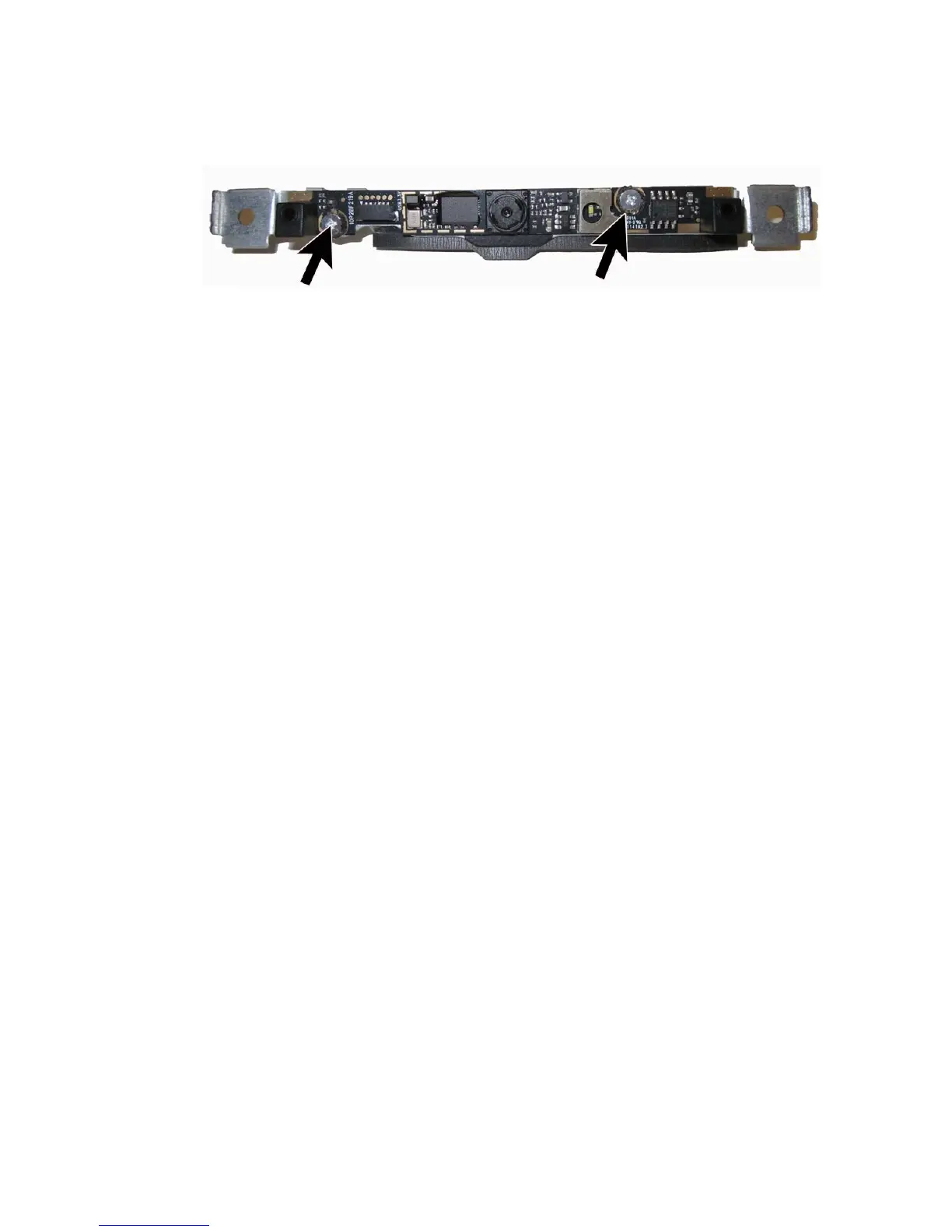

5. To remove the module from the bracket, remove the two Phillips screws that secure the module,
and then separate the module from the bracket.
Figure 7-39 Disconnecting the webcam module cable
To install a webcam module, reverse the removal procedures.
Webcam module 59

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
