4. Remove the Torx screw (2) that secures the board to the computer.

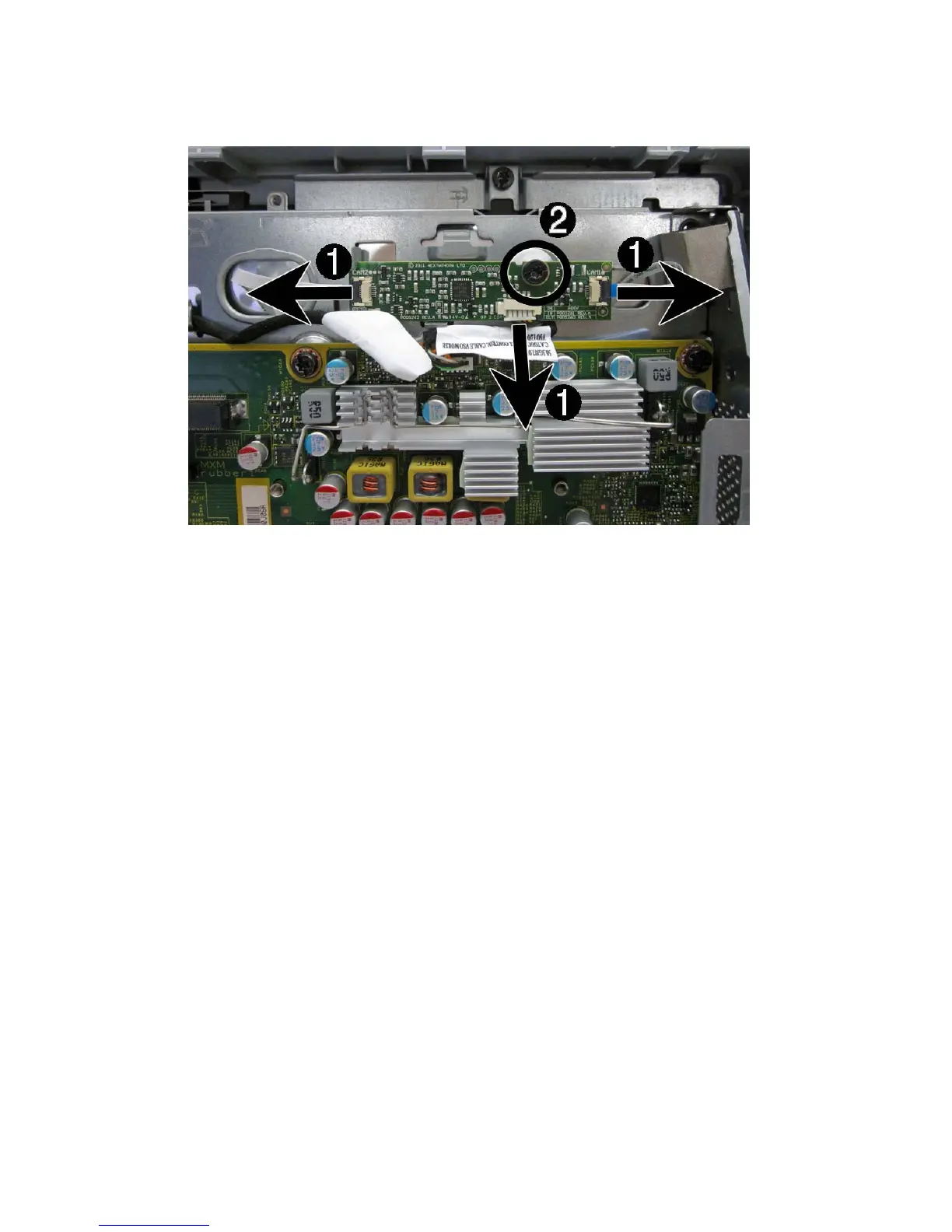

Figure 7-43 Removing the touch sensor board
5. Lift the touch sensor board from the computer.
To install the touch sensor board, reverse the removal procedures.
64 Chapter 7 Removal and Replacement Procedures All-in One (AIO) Chassis
