HP Compaq Elite 8300 All-in-One User Manual

14. Slide the system board toward the top of the computer (3), and then lift up the board from left
side to prevent interference between the side I/O bracket with the I/O ports on board.

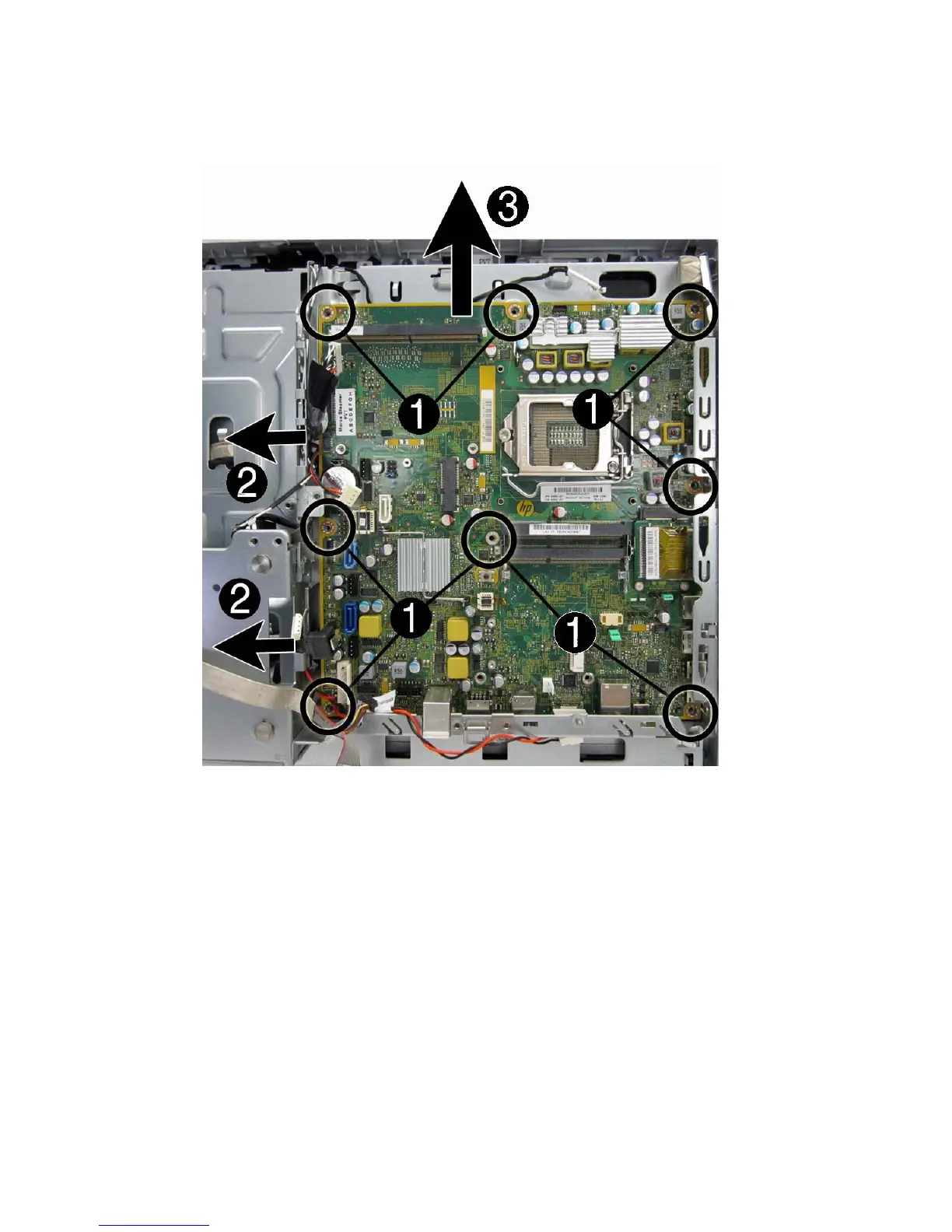

Figure 7-66 Removing the system board (model 6300 shown)
To install the system board, reverse the removal procedures.
Replace the thermal pad below the system board.
System board 85

HP Compaq Elite 8300 All-in-One Specifications

General

RAM	Up to 16 GB DDR3
Network	Integrated Intel 82579LM Gigabit Ethernet
Chipset	Intel Q77 Express
Processor	Intel Core i5-3470S
Storage	128 GB SSD, 256 GB SSD
Display	23-inch Full HD (1920 x 1080)
Graphics	Intel HD Graphics 2500
Operating System	Windows 7 Professional
Optical Drive	DVD+/-RW SuperMulti
USB Ports	6 x USB 2.0
Wireless	802.11a/b/g/n
Audio	Integrated High Definition Audio, Internal Speaker
Ports	VGA, DisplayPort, RJ-45, audio in/out
