Removal and Replacement Procedures
Maintenance and Service Guide 6–15
6.8 TPM Security Card
1. Prepare the notebook for disassembly (Section 6.3).
2. Remove the memory module compartment cover
(Section 6.7).
3. Remove the PM1.5×3.5 screw 1 that secures the TPM
security card to the notebook.
4. Lift up on the rear edge of the TPM security card 2 to
disconnect it from the system board.
5. Remove the TPM security card.

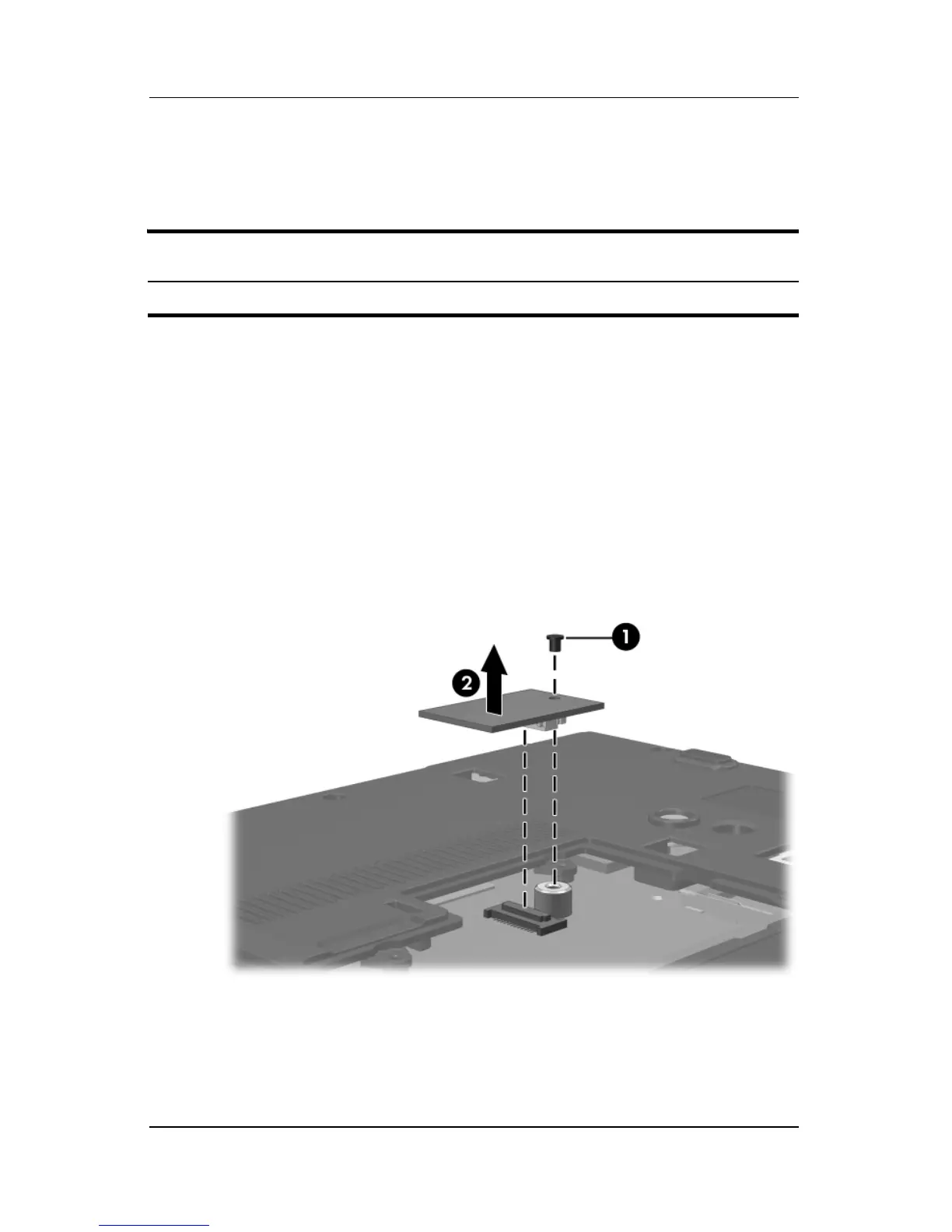

Removing a TPM Security Card
Reverse the above procedure to install the TPM security card.
TPM Security Card Spare Part Number Information
TPM security module 383545-001
