6–22 Maintenance and Service Guide
Removal and Replacement Procedures
6.11 Fan
1. Prepare the notebook for disassembly (Section 6.3).
2. Remove the keyboard cover (Section 6.9).
3. Release the keyboard (Section 6.10).
4. Disconnect the fan cable 1 from the system board.
5. Remove the three T8M2.0×7.5 screws 2 that secure the
fan to the notebook.
6. Remove the fan 3.

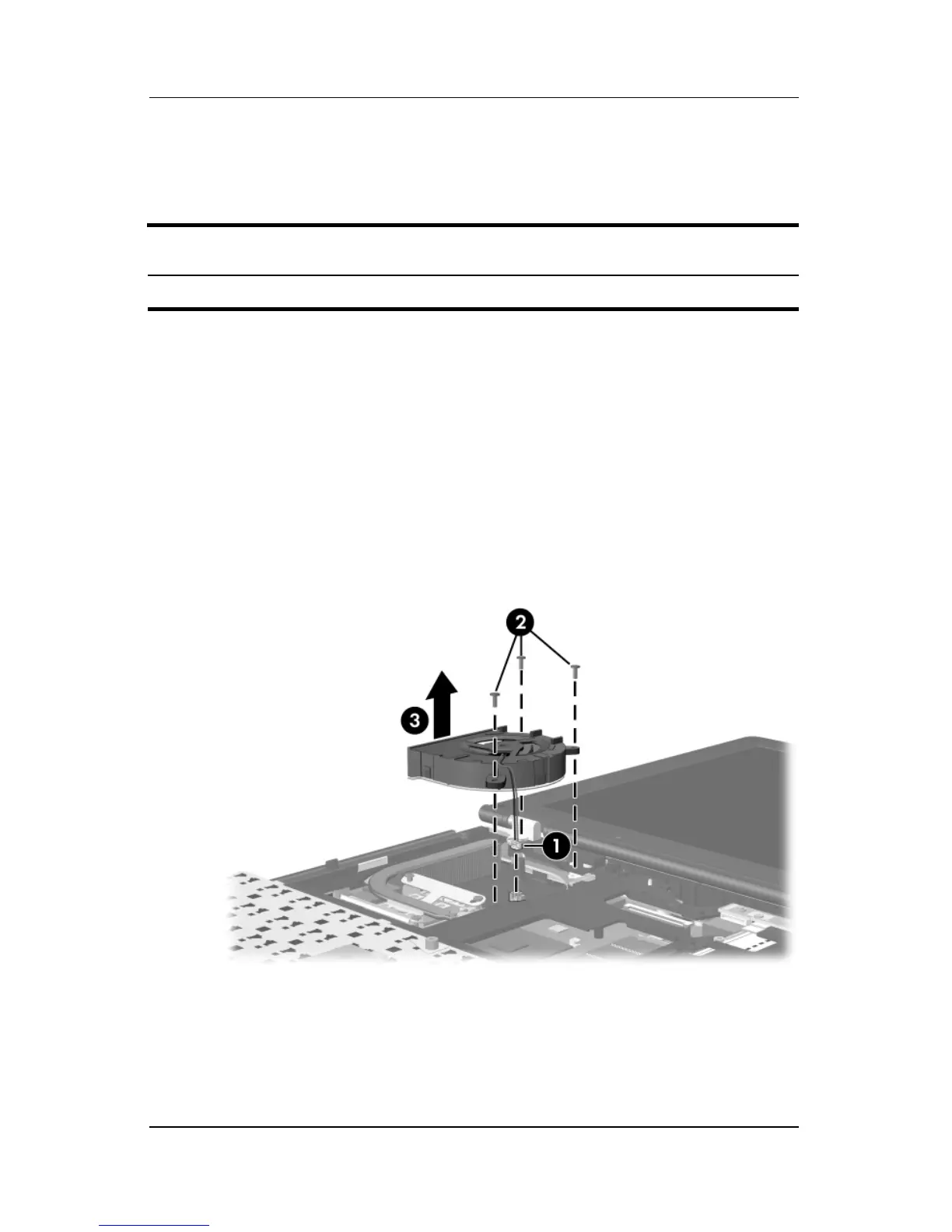

Removing the Fan
Reverse the above procedure to install the fan.
Fan Spare Part Number Information
Fan 383528-001
