Removal and Replacement Procedures
Maintenance and Service Guide 6–51

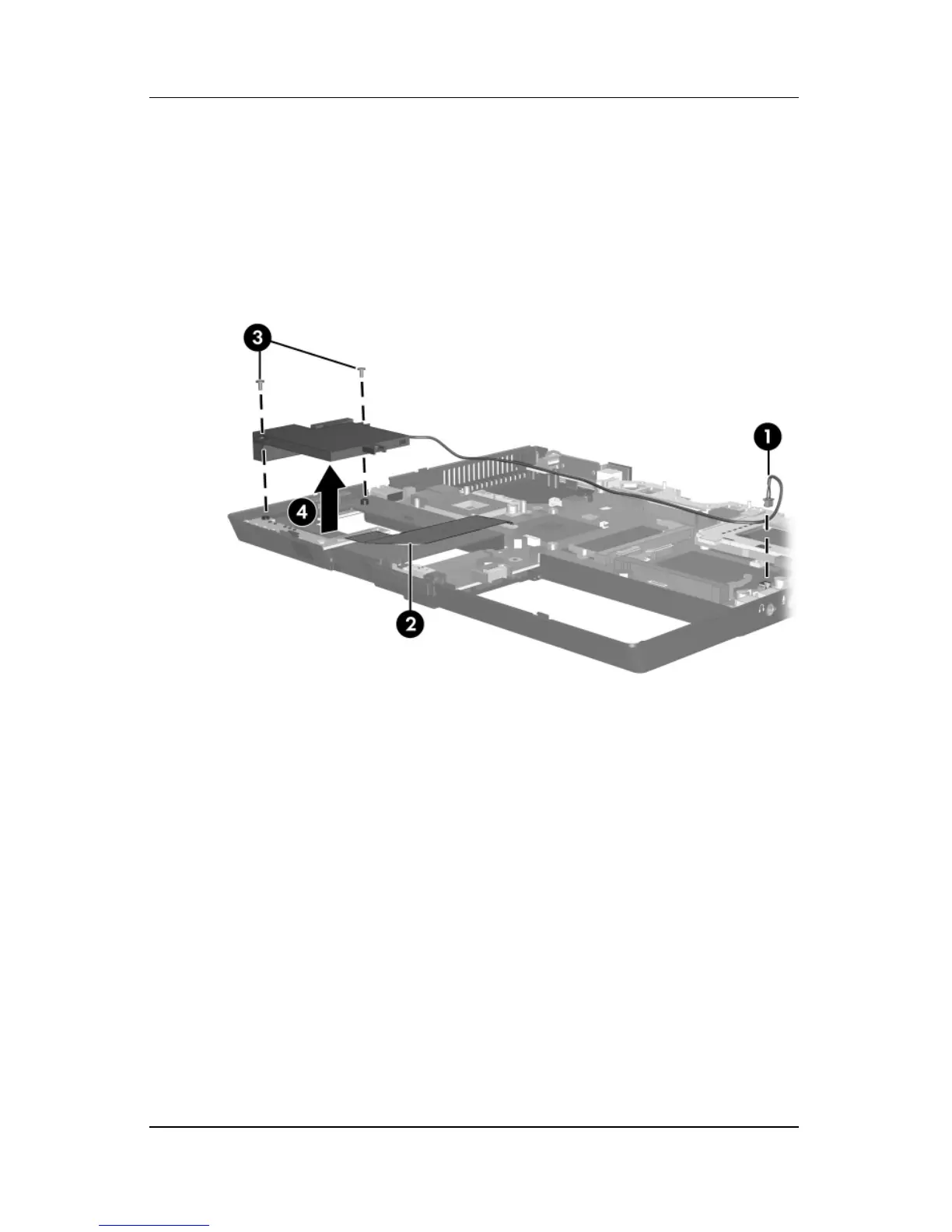

2. Disconnect the speaker cable 1 from the system board and
route the cable under the infrared board cable 2.
3. Remove the two T8M2.0×5.0 screws 3 that secure the
speaker to the notebook.
4. Remove the speaker 4.
Removing the Speaker
Reverse the above procedure to install the speaker.
