6–8 Maintenance and Service Guide
Removal and Replacement Procedures
7. Remove the four PM3.0×4.0 screws 1 that secure the hard
drive frame to the hard drive.
8. Lift the frame straight up 2 to remove if from the hard drive.
9. Remove the hard drive connector 3.

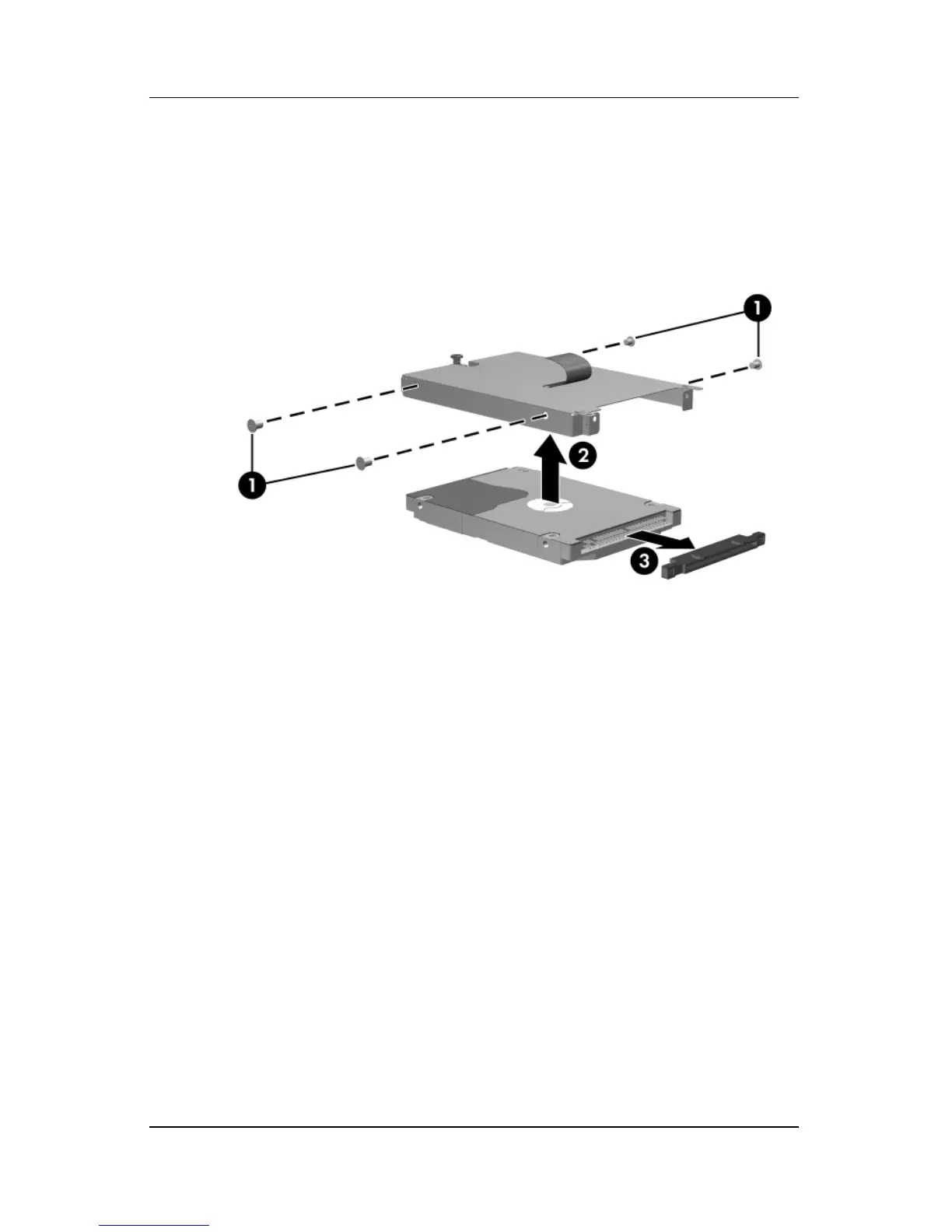

Removing the Hard Drive Frame
Reverse the above procedure to reassemble and install the
hard drive.
