HP Compaq nc6220 Maintenance And Service Guide

6–18 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the computer display-side up with the front panel
toward you.
5. Open the computer as far as possible.

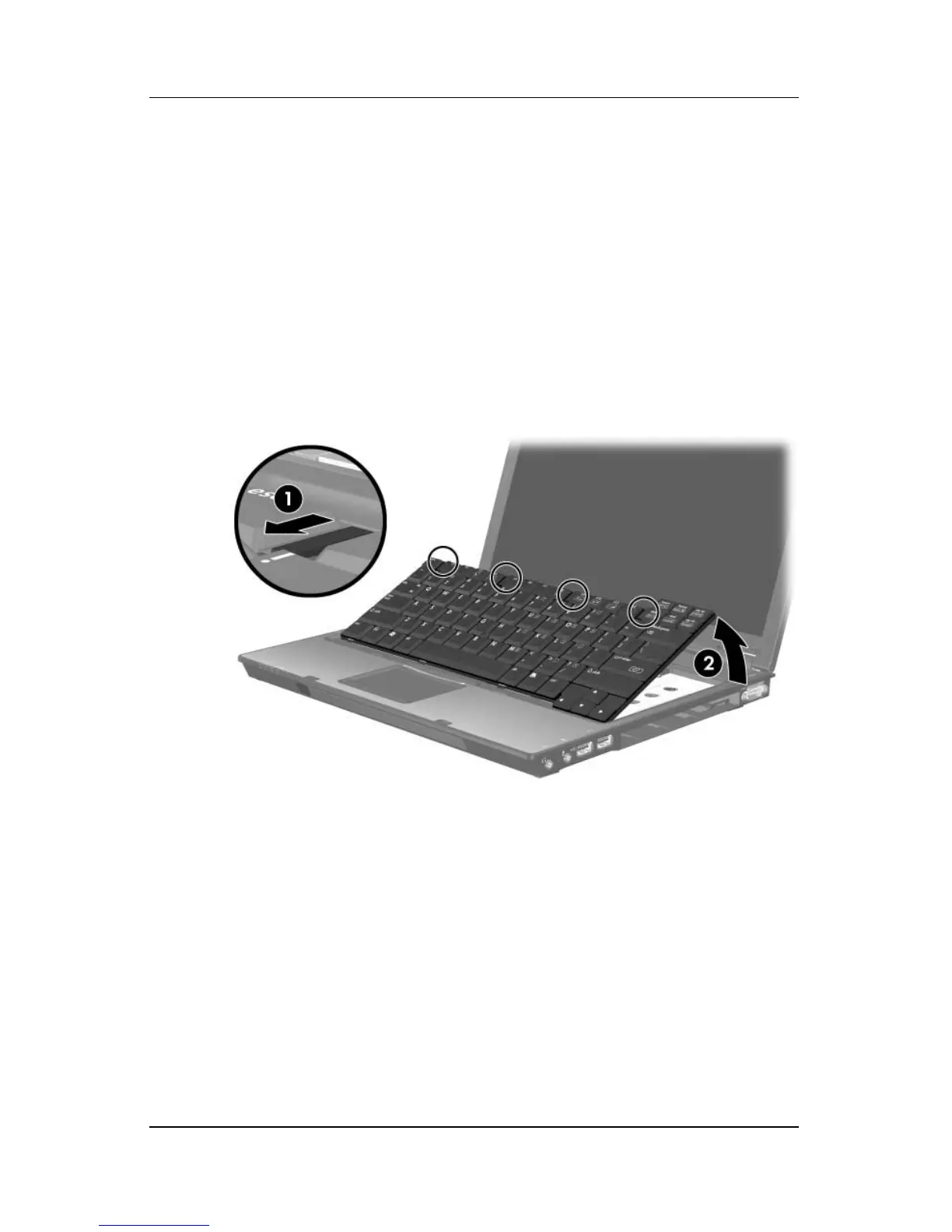

6. Slide the four keyboard retention tabs 1 forward. The tabs
are located between the
esc and f1 keys, between the f4 and f5
keys, between the
f8 and f9 keys, and between the f12 and
delete keys.
7. Lift the rear edge of the keyboard 2 and swing it forward
until it rests on the palm rest.
Releasing the Keyboard

HP Compaq nc6220 Specifications

General

Display	14.1-inch TFT
Maximum Memory	4 GB
Hard Drive Interface	ATA-100
Graphics	Intel Graphics Media Accelerator 900
Operating System	Windows XP Professional
Battery Life	Up to 4 hours
Processor	Intel Pentium M
Display Resolution	1024 x 768
Storage	40 GB
Networking	10/100/1000 Ethernet, 802.11b/g Wi-Fi
Ports	3 x USB 2.0, VGA, RJ-11, RJ-45, headphone/microphone jacks
Optical Drive	DVD-ROM
RAM	512 MB to 2 GB
