HP Compaq nc6220 Maintenance And Service Guide

6–22 Maintenance and Service Guide
Removal and Replacement Procedures
6.11 LED Board
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the keyboard (Section 6.9).
3. Remove the switch cover (Section 6.10).
4. Turn the switch cover upside down.
5. Remove five PM2.0×3.0 screws 1 that secure the LED board
to the switch cover.
6. Remove the LED board 2.

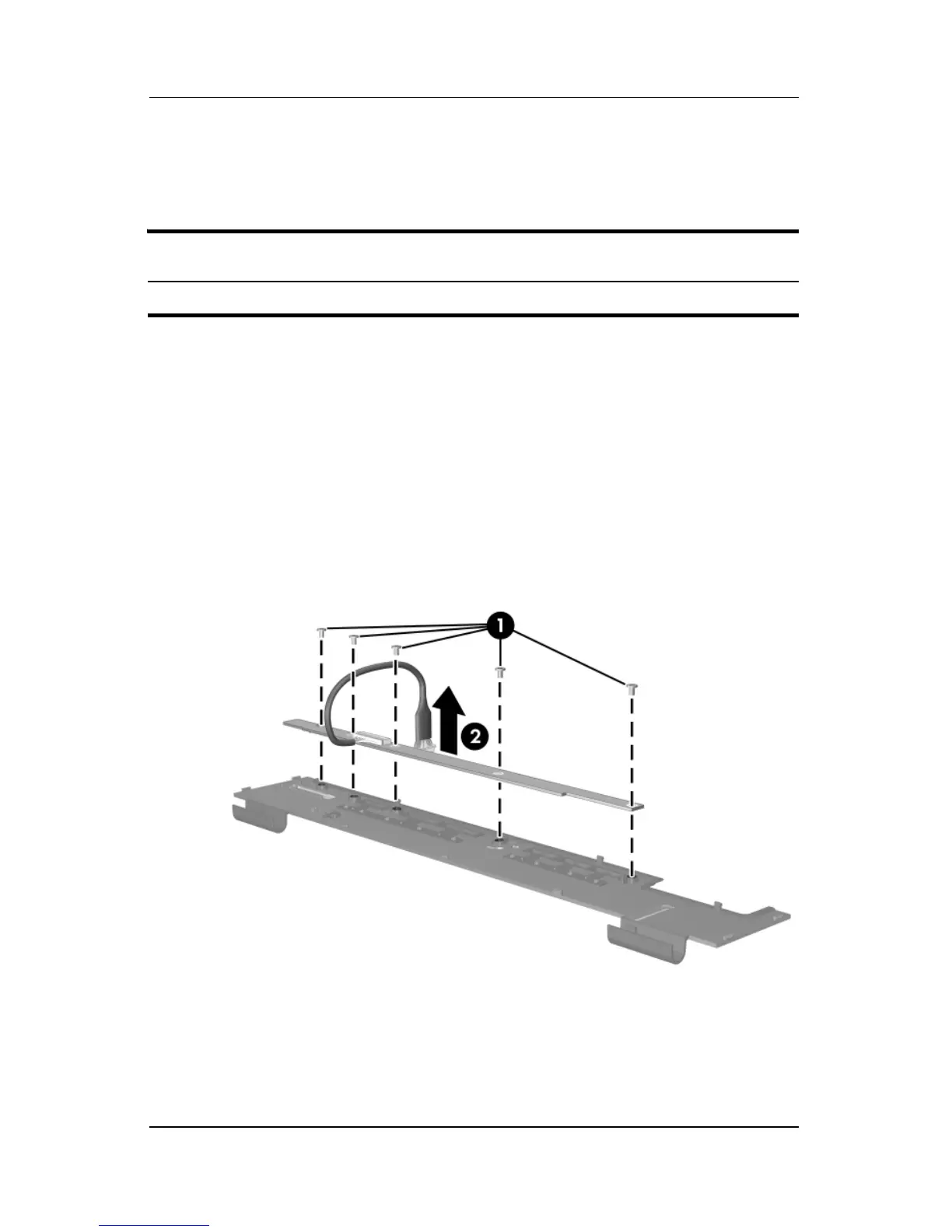

Removing the LED Board
Reverse the above procedure to install the LED board.
LED Board Spare Part Number Information
LED board (includes LED board cable) 379795-001
