Removal and Replacement Procedures
Maintenance and Service Guide 6–23
6.12 TPM Security Module
1. Prepare the computer for disassembly (Section 6.3).
2. Remove the keyboard (Section 6.9).
3. Remove the switch cover (Section 6.10).
4. Remove the PM1.5×3.0 screw 1 that secures the TPM
security module to the computer.
5. Lift up on the right side of the module 2 to disconnect it from
the system board.

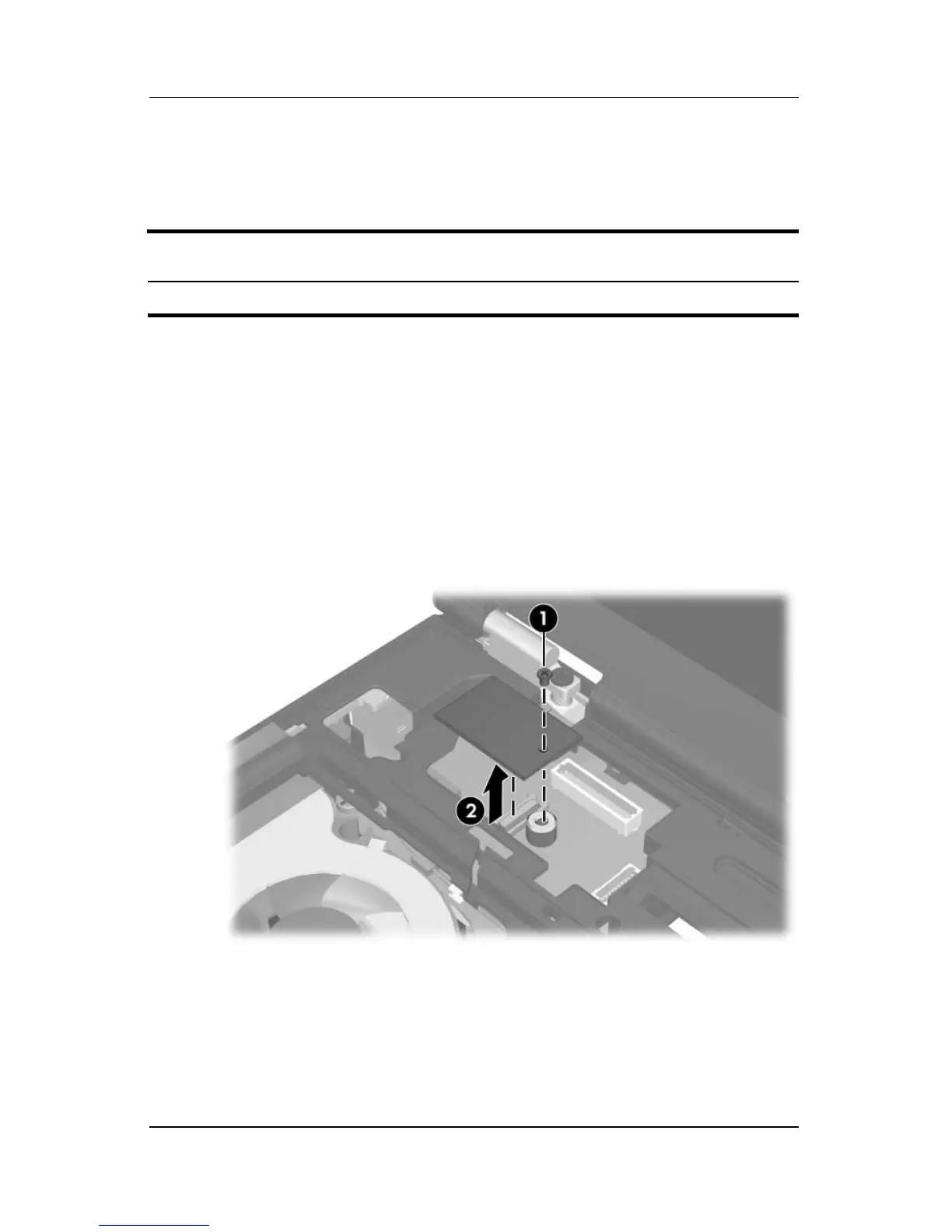

Removing the TPM Security Module
6. Remove the TPM security module.
Reverse the above procedure to install the TPM security module.
TPM Security Module Spare Part Number Information
TPM security module 379807-001
