6–30 Maintenance and Service Guide
Removal and Replacement Procedures
6.16 Modem Board
1. Prepare the computer for disassembly (Section 6.3).
2. Release the keyboard (Section 6.9).
3. Remove the two PM2.0×3.0 screws 1 that secure the modem
board to the computer.
4. Lift the left side of the modem board 2 to disconnect it from
the system board.
5. Disconnect the modem cable 3 from the modem board.
6. Remove the modem board.

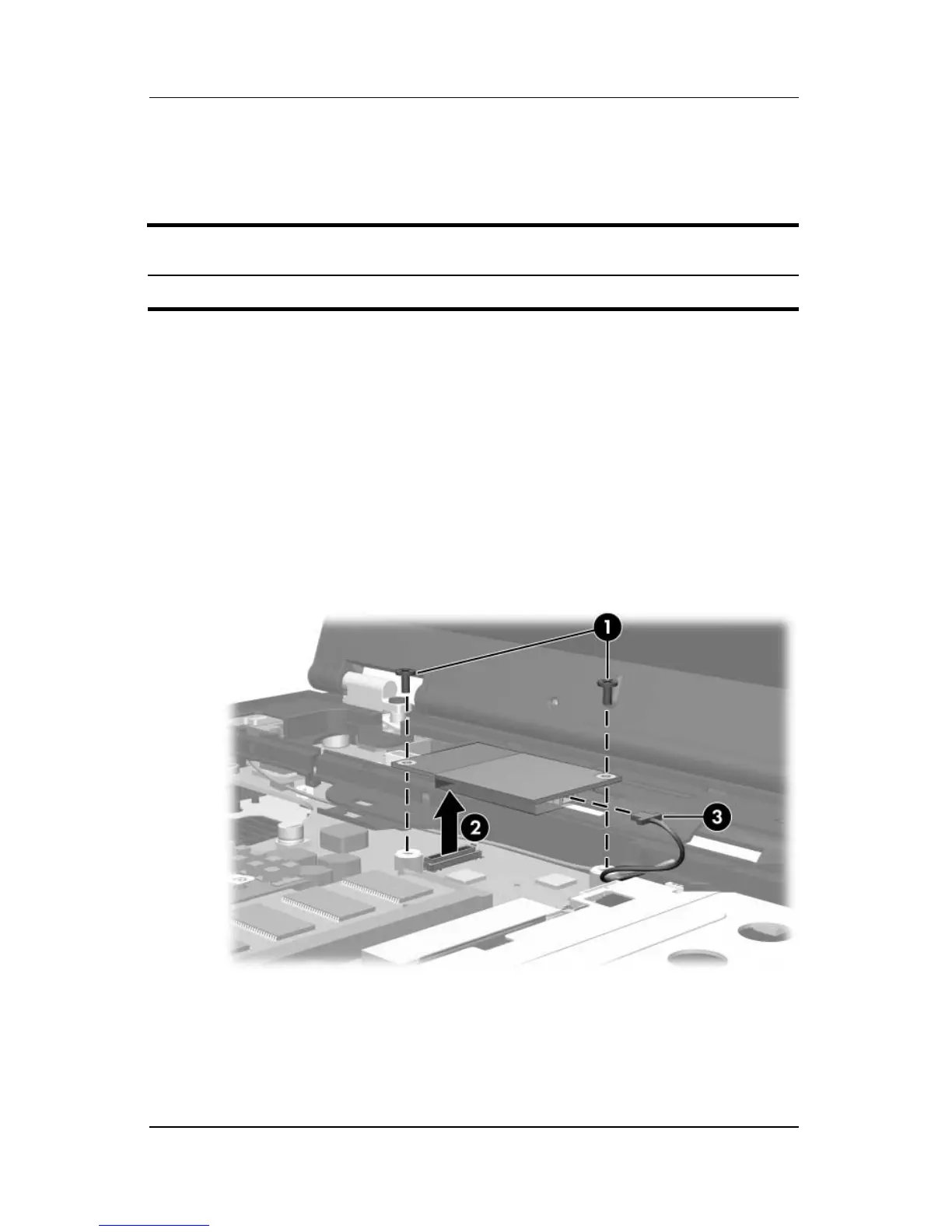

Removing the Modem Board
Reverse the above procedure to install the modem board.
Modem Board Spare Part Number Information
Modem board 380774-001
