6–36 Maintenance and Service Guide
Removal and Replacement Procedures
4. Disconnect the auxiliary and main antenna cables 1 from
the Mini PCI communications module.
Make note of which antenna cable is attached to which antenna
clip on the Mini PCI communications module before
disconnecting the cables.
5. Spread the two retaining tabs 2 on each side of the Mini PCI
socket to release the Mini PCI communications module.
(The side of the Mini PCI communications module opposite
the socket rises away from the computer.)
6. Remove the Mini PCI communications module by pulling the
module away from the socket at a 45-degree angle 3.
Mini PCI communications modules are designed with a
notch 4 to prevent incorrect installation into the Mini PCI
socket.

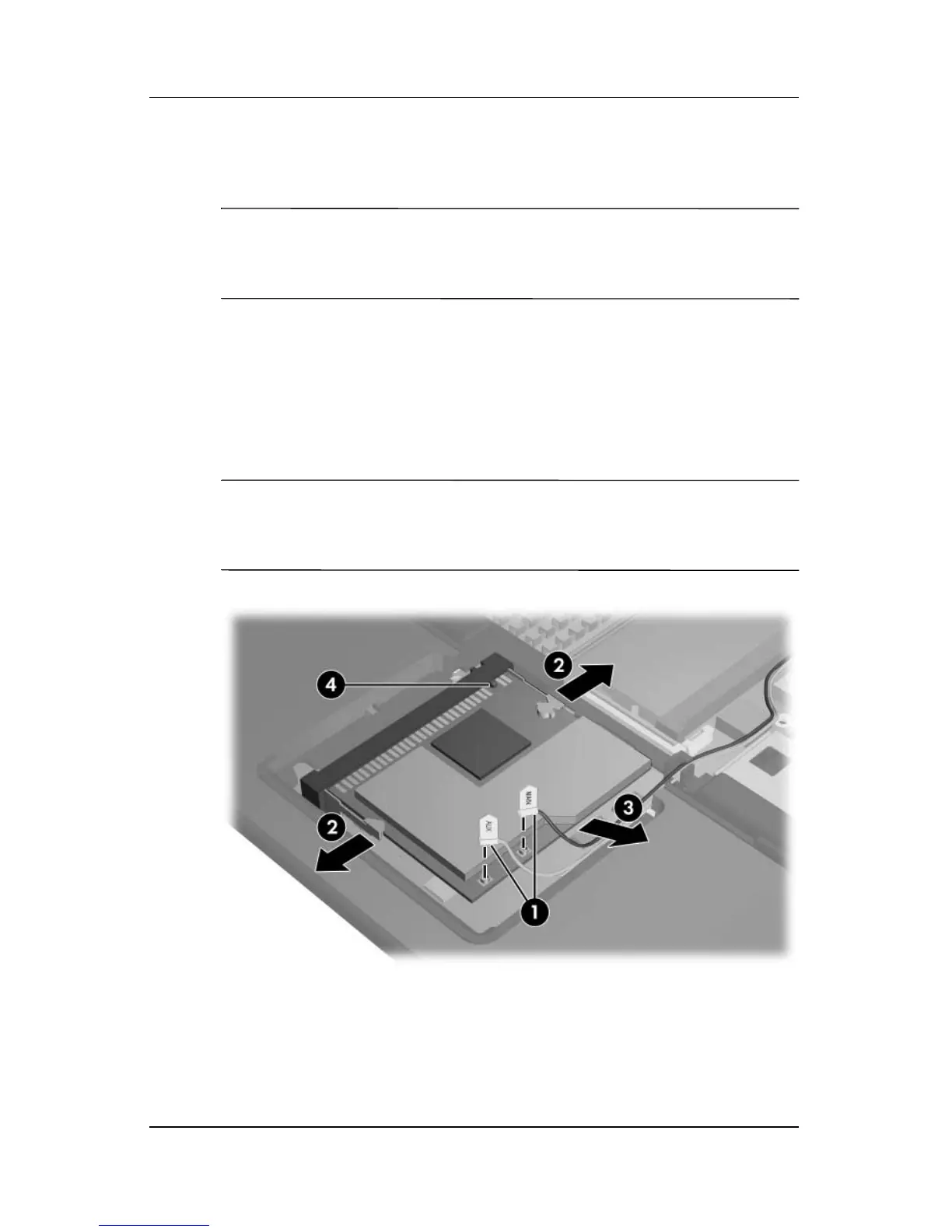

Removing a Mini PCI Communications Module
Reverse the above procedure to install a Mini PCI
communications module.
