Removal and Replacement Procedures
Maintenance and Service Guide 6–39
6. Position the computer with the rear panel toward you.

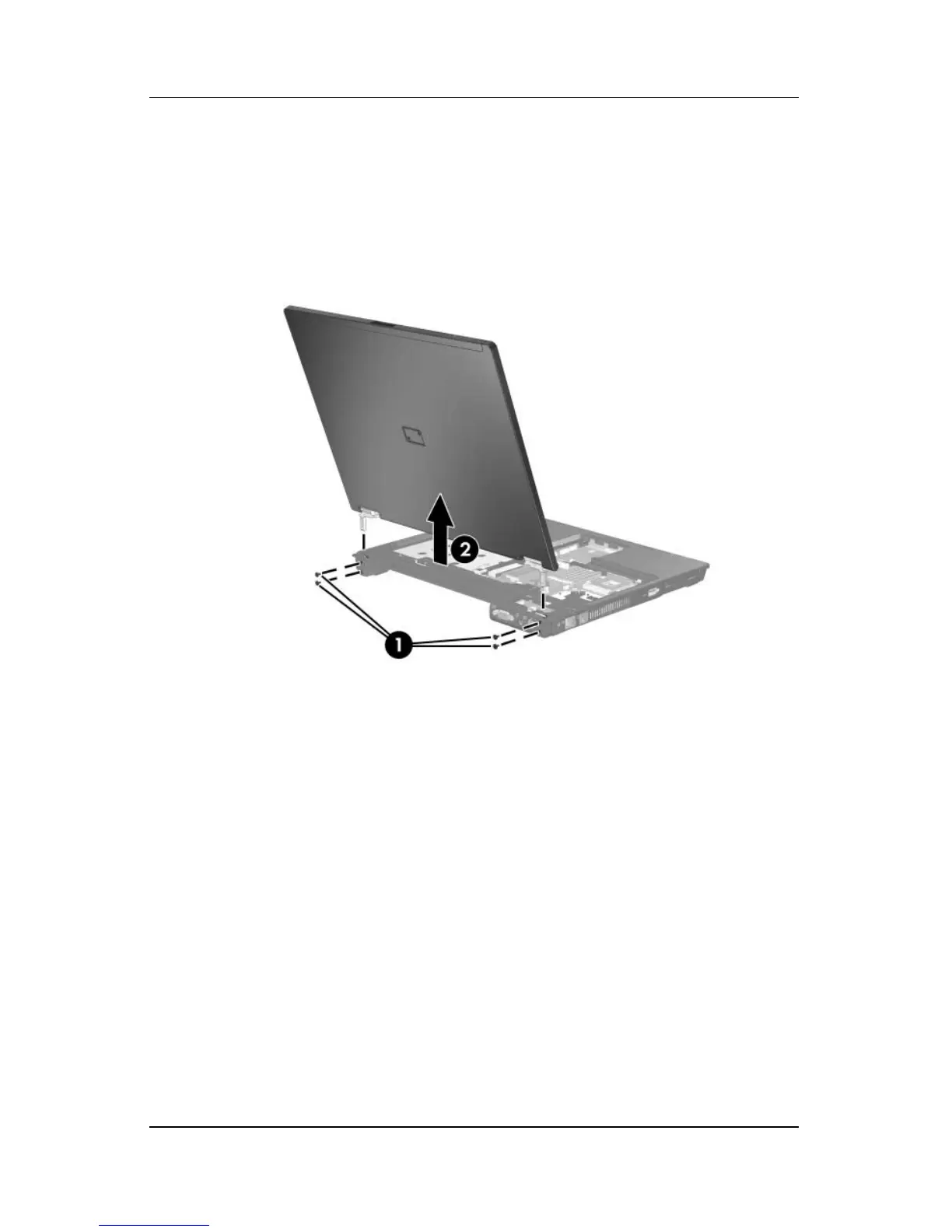

7. Remove the four T8M2.0×8.0 screws 1 that secure the
display assembly to the computer.
8. Lift the display assembly straight up and remove it 2.
Removing the Display Assembly
Reverse the above procedure to install the display assembly.
