Removal and Replacement Procedures
Maintenance and Service Guide 6–55
11. Position the computer with the front toward you.
12. Disconnect the following cables from the system board:
1 Audio board cables
2 Serial connector cable
3 RTC battery cable
13. Remove the four T8M2.0×8.0 screws 4 that secure the
system board to the base enclosure.

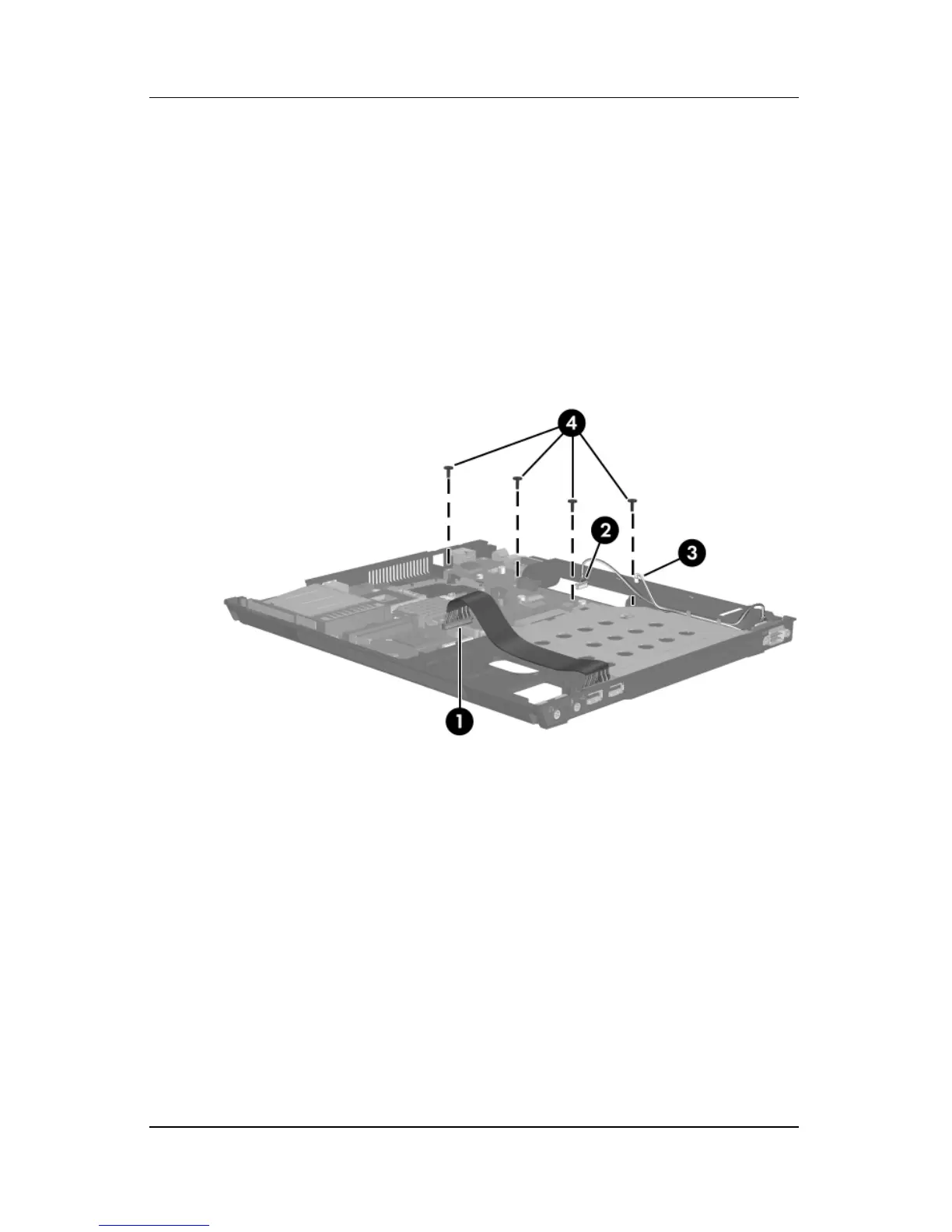

Disconnecting the System Board Cables and Removing the
System Board Screws
