D–8 Maintenance and Service Guide
Display Component Recycling

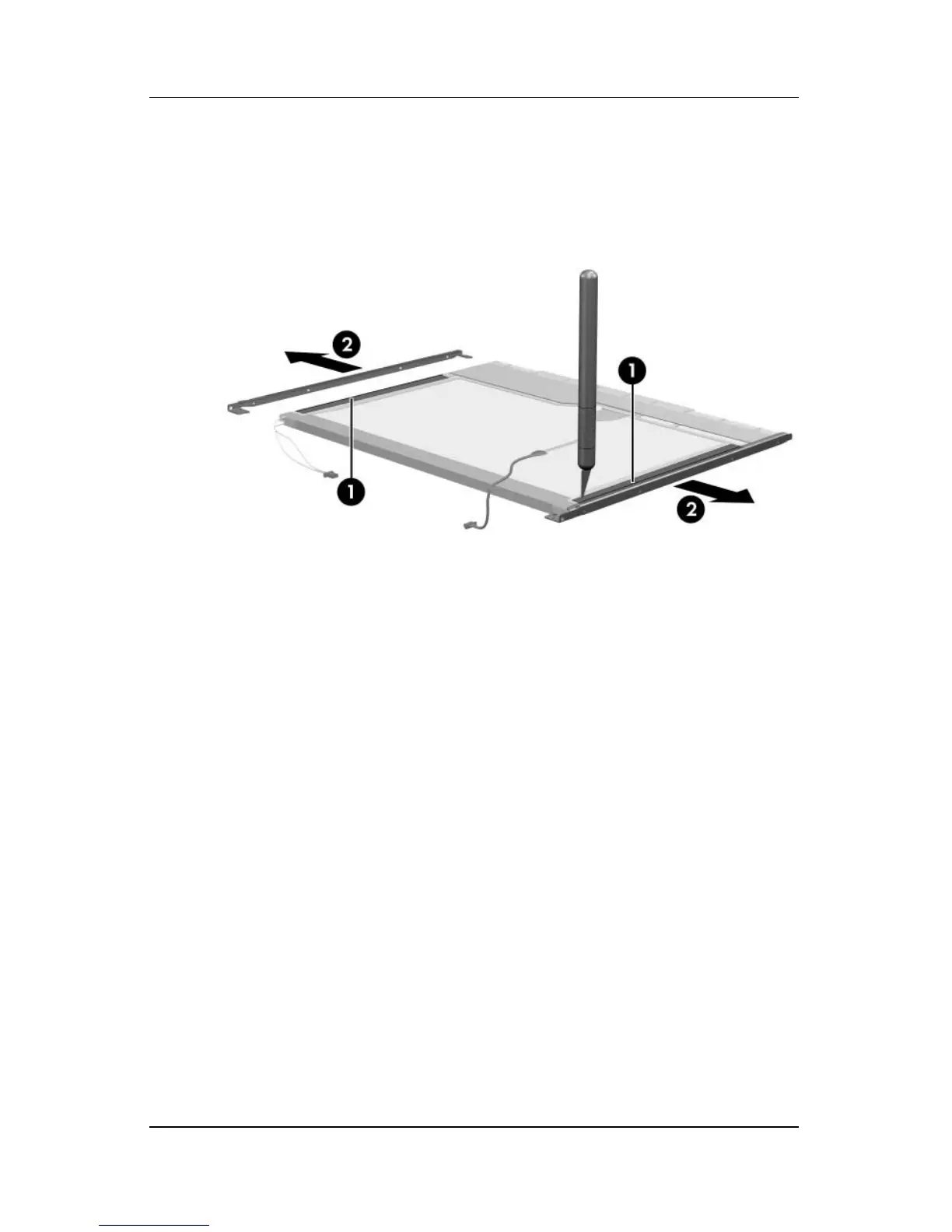

9. Use a sharp-edged tool to cut the tape 1 that secures the
side of the display panel to the display panel frame.
10. Remove the display panel frame 2 from the display panel.
Removing the Display Frame
