5–20 Maintenance and Service Guide
Removal and Replacement Procedures
4. Turn the notebook display-side up with the front panel toward
you.
5. Open the notebook as far as possible.

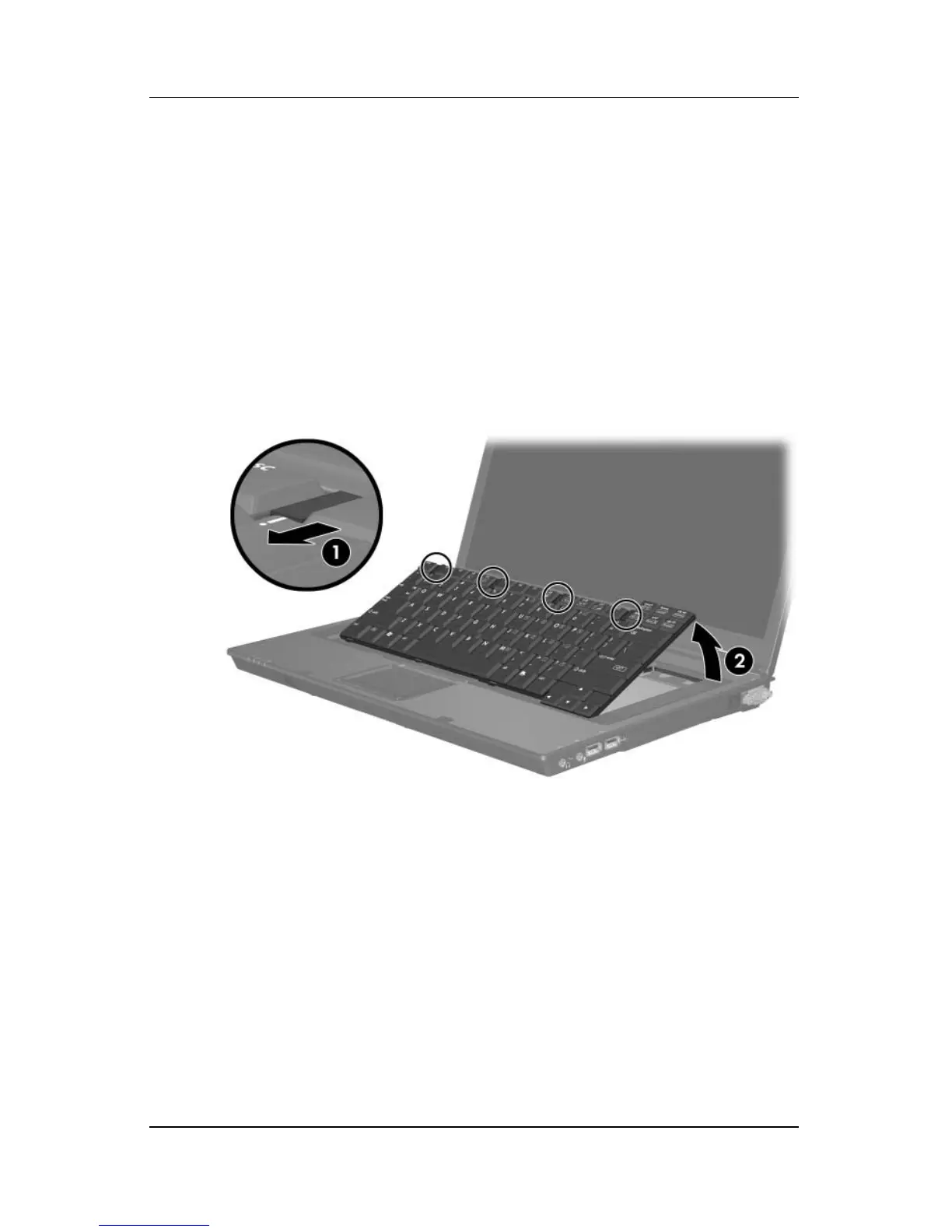

6. Slide the 4 keyboard retention tabs toward you 1. The tabs
are located between the
esc and f1 keys, between the f4 and f5
keys, between the
f8 and f9 keys, and between the f12 and
delete keys.
7. Lift the rear edge of the keyboard and swing it toward you
until it rests on the palm rest 2.
Releasing the Keyboard
